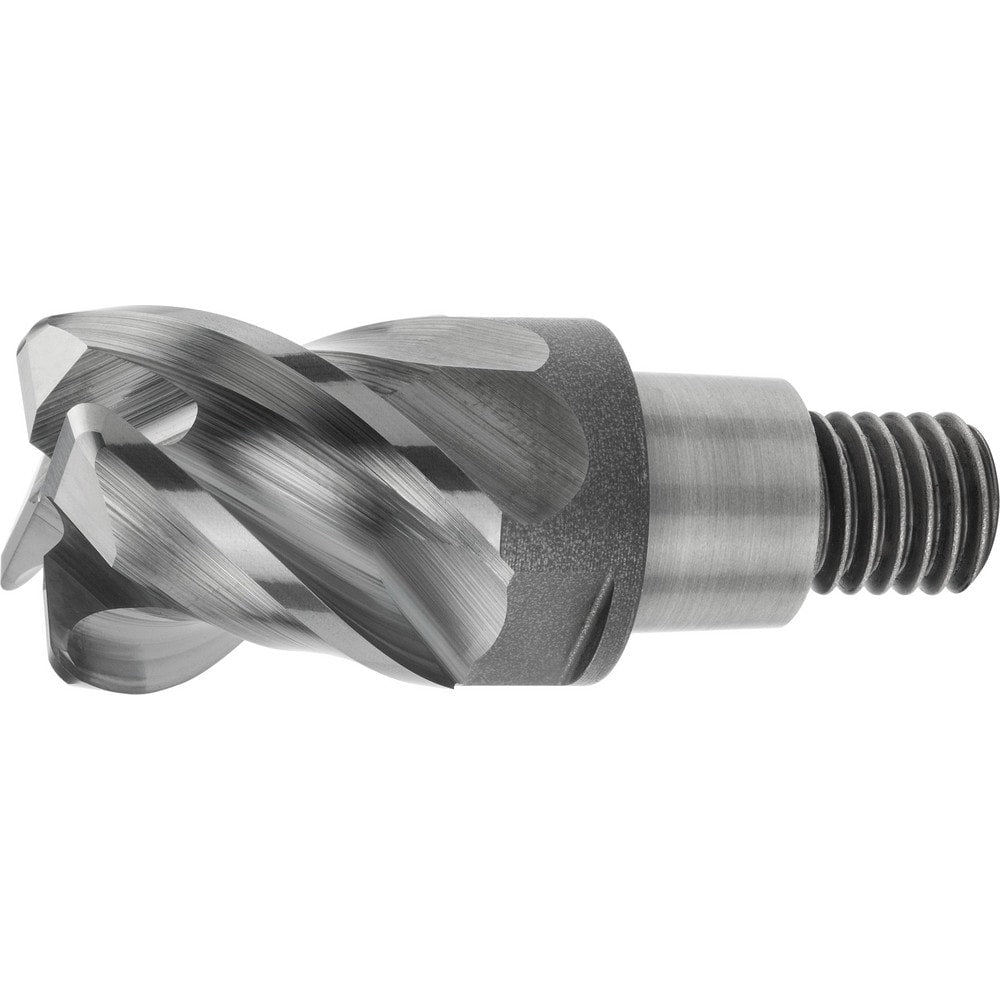

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 12.00; Length of Cut (mm): 12.0000; Number Of Flutes: 4
Item #: 75855668
Brand: Mitsubishi
Model #: 675403
Product Specifications
| Mill Diameter (mm) | 12.00 |
| Length of Cut (mm) | 12.0000 |
| Number Of Flutes | 4 |
| Overall Length (mm) | 33.7000 |
| Corner Radius (mm) | 0.50 |
| Coating/Finish | AlCrN |
| End Mill Material | Carbide |
| Corner Radius (Decimal Inch) | 0.0197 |
| Overall Length (Decimal Inch) | 1.3268 |
| Mill Diameter (Decimal Inch) | 0.4724 |
| Centercutting | No |
| Connection Type | iMX12 |
| Flute Type | Helical |
| Minimum Helix Angle | 42 |
| Maximum Helix Angle | 45 |
| Material Grade | Solid Carbide |
| Helix Angle | Variable |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Coolant Through | No |
| Variable Helix | Yes |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.4724 |
| Variable Index | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
