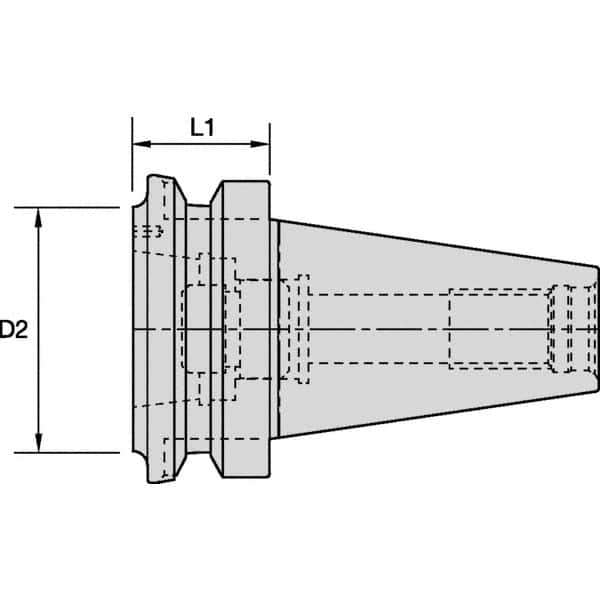

Kennametal - BT30 Outside Taper, KR32 Inside Taper, BT to KR Taper Adapter - 23.11mm Projection, 45.97mm Nose Diam, 71.53mm OAL
Item #: 91874651
Brand: Kennametal
Model #: 2202446
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | BT to KR |
| Outside Taper Size | BT30 |
| Inside Taper Size | KR32 |
| Projection (Decimal Inch) | 0.9100 |
| Projection (mm) | 23.11 |
| Through Coolant | No |
| Nose Diameter (Decimal Inch) | 1.8100 |
| Nose Diameter (mm) | 45.97 |
| Overall Length (mm) | 71.53 |
| Overall Length (Decimal Inch) | 2.8160 |
| Drawbar Thread Size | M12 |
