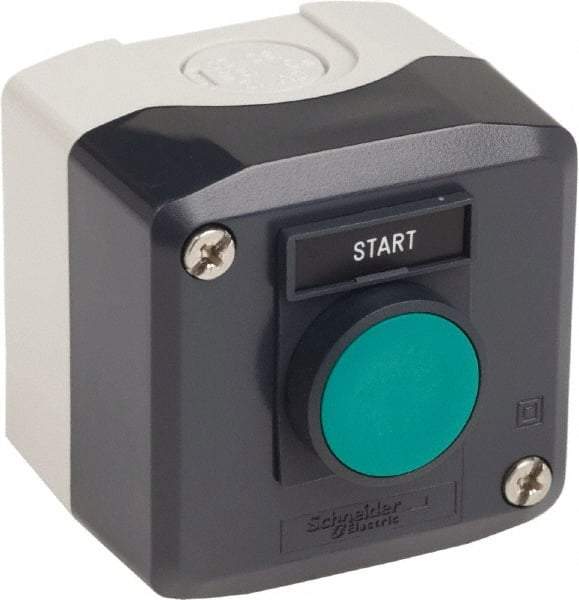

Schneider Electric - 1 Operator, Flush Pushbutton Control Station - Start (Legend), Momentary Switch, NO Contact, NEMA 1, 13, 4, 4X
Item #: 91494948
Brand: Schneider Electric
Model #: XALD101H29H7
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Control Station Type | Control Station |
| Number of Operators | 1 |
| Legend Markings | Start |
| Switch Action | Momentary |
| Contact Configuration | NO |
| Operator Type | Flush Pushbutton |
| NEMA Rating | 1; 13; 4; 4X |
| Color | Gray |
| Overall Height (mm) | 68 |
| Overall Height (Decimal Inch) | 2.6800 |
| Overall Width (mm) | 68 |
| Overall Width (Decimal Inch) | 2.6800 |
| Overall Depth (mm) | 91 |
| Overall Depth (Decimal Inch) | 3.5800 |
| Ingress Protection Rating | IP66 |
| Standards Met | CCN NKCR; CE Marked; CSA C22.2 No. 14; CSA File LR 44087 Class 3211 03; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; JIS C 4520; UL 508; UL File E164353 |
