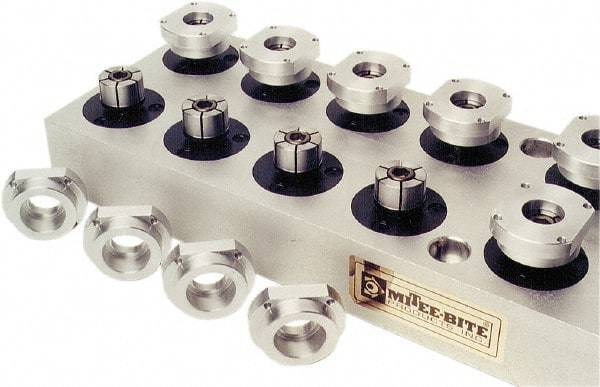

Mitee-Bite - 1.15 to 1.65" Expansion Diam, 10,000 Lb Holding Force, M5 Mounting Screw, M16 Center Screw, Steel ID Expansion Clamps - 2.736" Flange Diam, 0.31" Flange Thickness, 2.2" Mount Hole Diam, 3 Mount Holes, 1.56" Overall Height, 224 Ft/Lb Torque
Item #: 91438689
Brand: Mitee-Bite
Model #: 38300
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Flange Diameter (Decimal Inch) | 2.7360 |
| Maximum Expansion Diameter (Decimal Inch) | 1.6500 |
| Minimum Expansion Diameter (Decimal Inch) | 1.1500 |
| Holding Force (Lb.) | 10000.00 |
| Center Screw Thread Size | M16 |
| Mounting Screw Thread Size | M5 |
| Material | Steel |
| Mount Hole Diameter (Decimal Inch) | 2.2000 |
| Flange Thickness (Decimal Inch) | 0.3100 |
| Expansion Height (Decimal Inch) | 1.0600 |
| Height Above Flange (Decimal Inch) | 1.2500 |
| Overall Height (Decimal Inch) | 1.5600 |
| Number of Mount Holes | 3 |
| Thread Length Below Base (Decimal Inch) | 0.7900 |
| Torque (Ft/Lb) | 224.00 |
