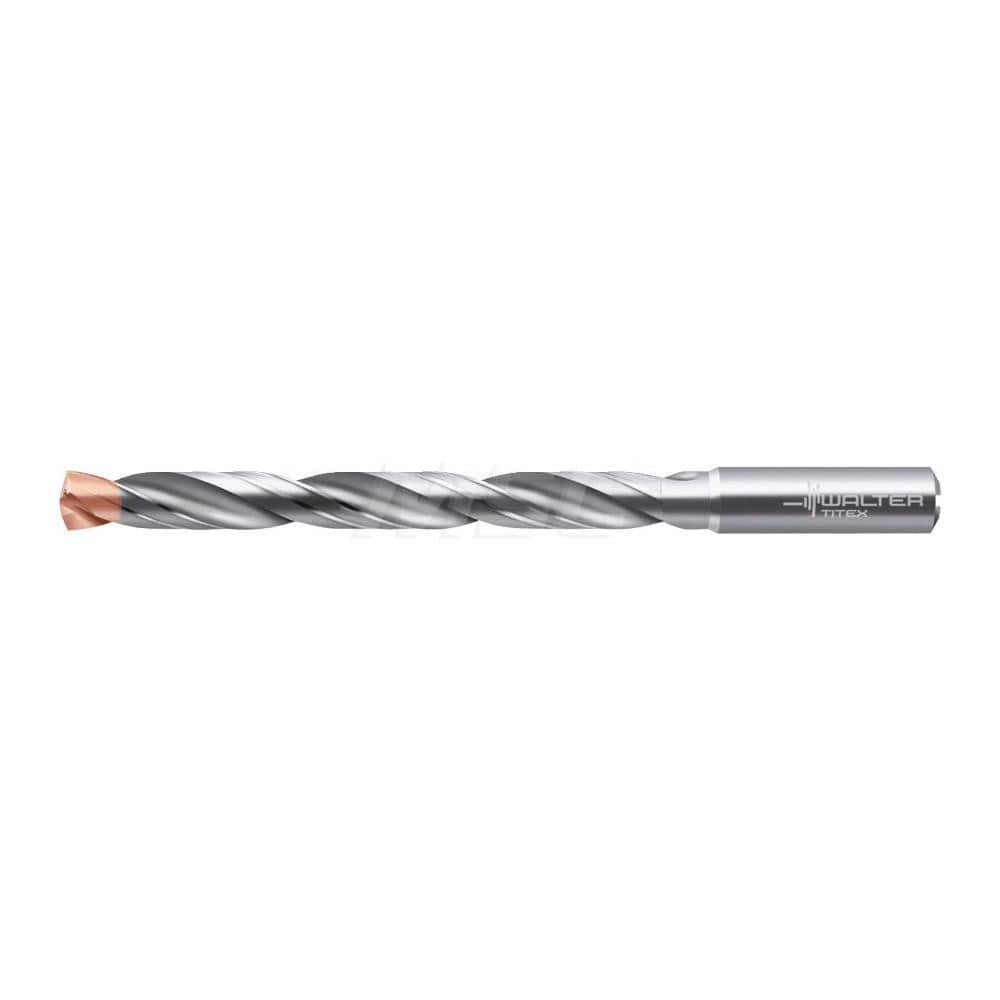

Jobber Length Drill Bit: 0.5625″ Dia, 140 °, Solid Carbide Double Coating, 8.0315″ OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series A6489DPP
Item #: 91436352
Brand: Walter-Titex
Model #: 5834715
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.5625 |
| Drill Bit Size (Inch) | 9/16 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Double Coating |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | X-treme D |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 204.00 |
| Overall Length (Decimal Inch) | 8.0315 |
| Flute Length (mm) | 152.00 |
| Flute Length (Decimal Inch) | 5.9843 |
| Series | A6489DPP |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit; Stack Drilling |
| Flute Length x Diamter Ratio | 8xD |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (mm) | 16.00 |
| Maximum Drilling Depth (Decimal Inch) | 5.3543 |
| Maximum Drilling Depth (mm) | 136.00 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Drill Point Length (mm) | 2.60 |
| Drill Point Length (Decimal Inch) | 0.1020 |
| Drill Bit Diameter Tolerance | m7 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | High Performance |
| Standards | ISO; ANSI |
| Specification Number | DIN 6535HA |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Material Grade | K30F |
| Specification Designation | DIN |
 | |
| MSC Part # | 91436352 |
| Mfr Part # | 5834715 |
| Country of OriginCountry of Origin is subject to change | UNITED STATES |
