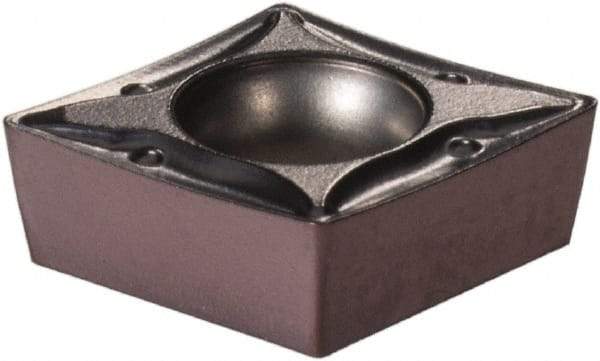

Iscar - CCMT3-1 14 Grade IC806 Carbide Turning Insert - TiAlN Finish, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 91275271
Brand: Iscar
Model #: 5566755
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 3-1 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | IC806 |
| Coating | TiAlN |
| Material Grade | Submicron |
| Chip Breaker | 14 |
| Insert Length (Decimal Inch) | 0.3820 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | CCMT 3-1-14 |
| Relief Angle | 7 |
| Proprietary Coating Designation | SumoTec |
| Coating Process | PVD |
| Included Angle | 80 |
| Series | Isoturn |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Insert Holding Method | Screw |
| FullRadius | No |
| Shape | Diamond |
