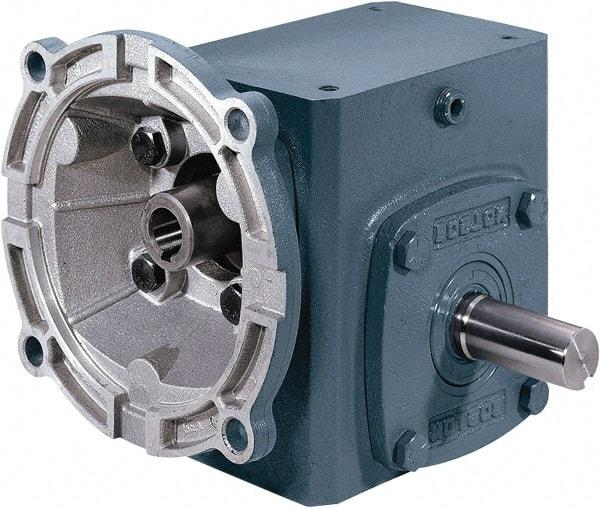

Boston Gear - 3-3/4 Centerline Distance, 50:1, 35 RPM Output, 2.71 Input Horsepower, 3,626 Lbs. Max Torque, Speed Reducer - Part No. F738-50-B9-J, Single Shaft Right, 1-1/8" Bore, 7.63" High, 180TC NEMA
Item #: 91229708
Brand: Boston Gear
Model #: 52106
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 3.750 |
| Ratio | 50:1 |
| NEMA Size | 180TC |
| PartNo | F738-50-B9-J |
| Shaft Style | Single Shaft Right |
| Bore Size (Decimal Inch) | 1.125 |
| Height (Inch) | 7.63 |
| Maximum Torque Inch/Lbs (Pounds) | 3626.00 |
| Maximum Input Horsepower | 2.71 |
| Output RPM at 1750 Input | 35.0 |
