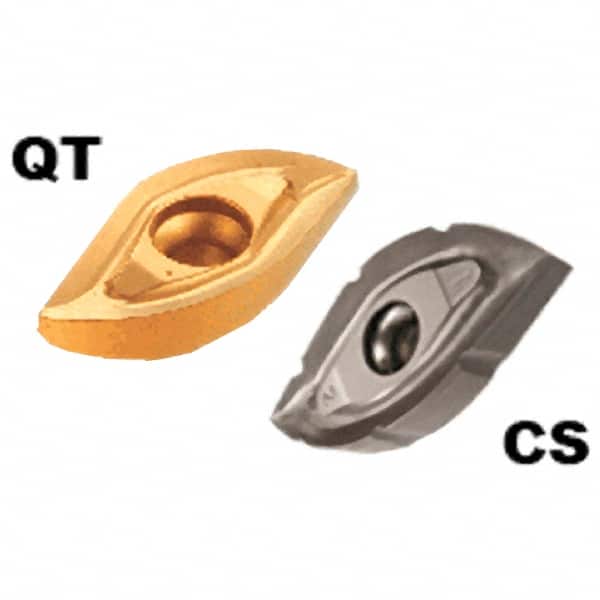

Iscar - BCR160 QT Grade IC908 Carbide Milling Insert - TiAlN Finish, 3.3mm Thick, 8mm Corner Radius
Item #: 91172031
Brand: Iscar
Model #: 5604108
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BCR |
| Insert Size | 160 |
| Material | Carbide |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Width (mm) | 7.70 |
| Length (mm) | 12.70 |
| Thickness (mm) | 3.30 |
| Corner Radius (mm) | 8.00 |
| Coating Process | PVD |
| Shape | Ball Nose Rounded Tip |
| Chipbreaker | QT |
| Maximum Depth of Cut (mm) | 5.60 |
| ISO Number | BCR D160-QT |
