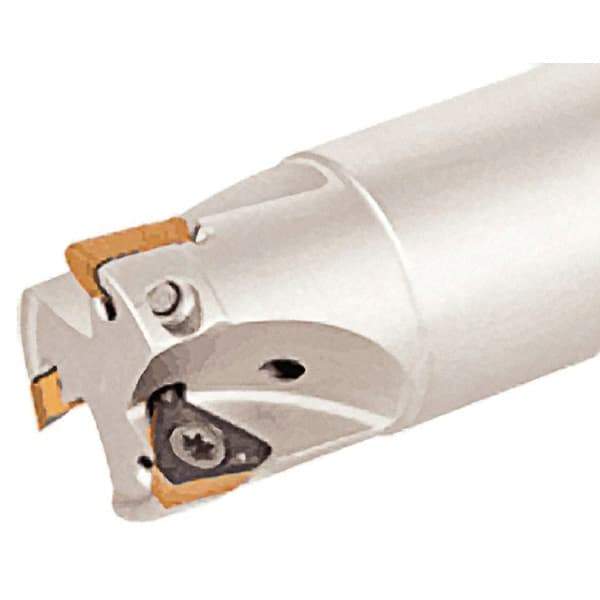

Iscar - 1" Cut Diam, 0.315" Max Depth of Cut, 1" Shank Diam, 7.87" OAL, Indexable Square Shoulder Helical End Mill - HM390 TPKT 1003 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series HeliIQMill
Item #: 91168161
Brand: Iscar
Model #: 3106624
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 7.8700 |
| Lead Angle | 90 |
| Series | HeliIQMill |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | HM390 ETP-10 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.5700 |
| Weldon Flat | No |
| Insert Compatibility | HM390 TPKT 1003 |
| Shank Length (Decimal Inch) | 6.3000 |
