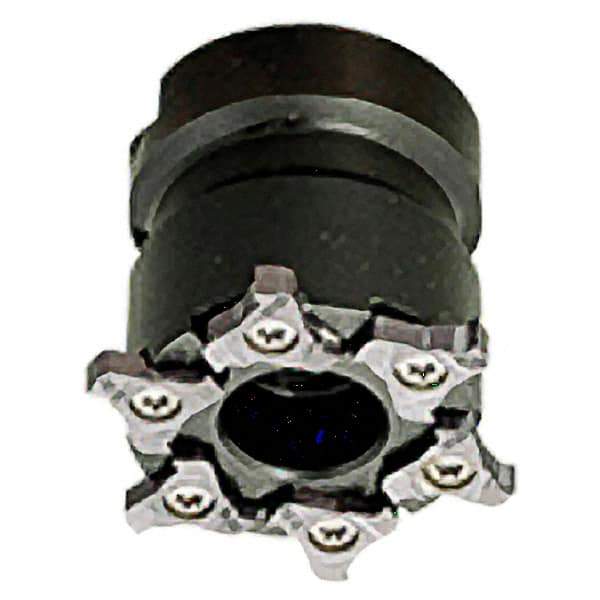

Iscar - Shell Mount B Connection, 0.256" Cutting Width, 50mm Cutter Diam, 22mm Hole Diam, 6 Tooth Indexable Slotting Cutter - TRIB-SM Toolholder, TRI Insert, Right Hand Cutting Direction
Item #: 91167825
Brand: Iscar
Model #: 2301958
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Cutting Width (Decimal Inch) | 0.2560 |
| Maximum Depth of Cut (mm) | 0.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0000 |
| Cutter Diameter (mm) | 50.00 |
| Hole Diameter (mm) | 22.00 |
| Number of Teeth | 6 |
| Toolholder Style | TRIB-SM |
| Series | ChamSlit(TRIB-SM) |
| Insert Style | TRI |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Cutting Width (mm) | 6.50 |
| Hub Diameter (mm) | 39.70 |
| Cutter Body Width (mm) | 39.00 |
| Complete Insert Compatibility1 | TRI 16RK-4.25-0.15; TRI 16RK-5.0-0.2; TRI 16RK-5.25-0.15; TRI 16RK-6.0-0.2 |
