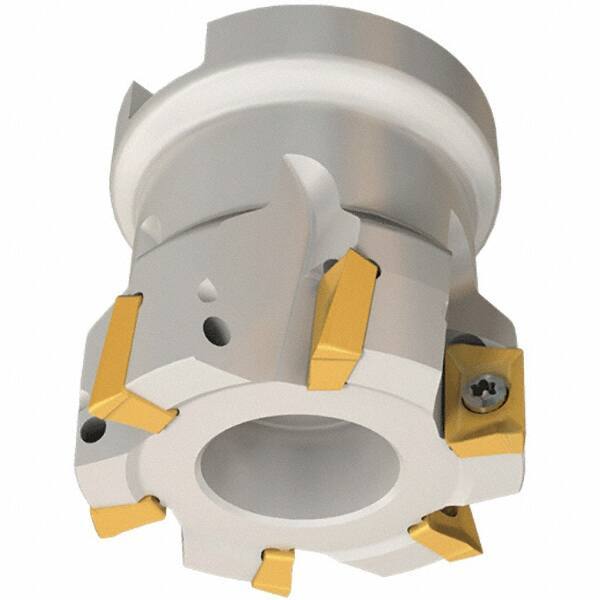

Iscar - 3 Inserts, 32mm Cut Diam, 16mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 35mm High, AP.. 1003 Insert Compatibility, Series Heli2000
Item #: 91167643
Brand: Iscar
Model #: 3102062
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Arbor Hole Diameter (mm) | 16.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 35.00 |
| Insert Compatibility | AP.. 1003 |
| Series | Heli2000 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 10.00 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Cutter Style | HM90 F90AP-10 |
| Number of Flutes | 3 |
| Keyway Width (mm) | 8.40 |
| Maximum RPM | 35355 |
| Cutting Edge Length (Decimal Inch) | 0.3940 |
| Minimum Insert Radius (Decimal Inch) | 0.0080 |
| Counterbore Diameter (Decimal Inch) | 0.5510 |
| Complete Insert Compatibility | AP..10.. |
