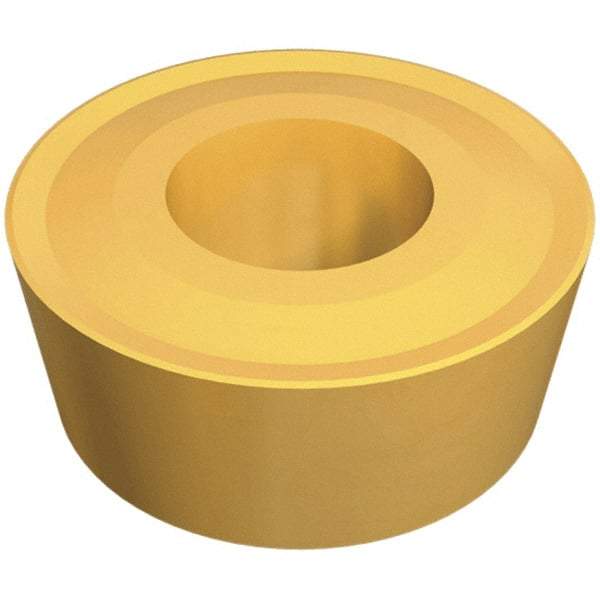

Iscar - RCMT2006M0 Grade IC20 Carbide Turning Insert - Uncoated, Round, 20mm Inscr Circle, 1/4" Thick
Item #: 91162115
Brand: Iscar
Model #: 5500632
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 2006M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 20.00 |
| Inscribed Circle (Decimal Inch) | 0.7874 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Hole Diameter (mm) | 6.50 |
| Hole Diameter (Decimal Inch) | 0.2560 |
| Rake | Positive |
| Relief Angle | 7 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Insert Holding Method | Screw |
| Shape | Round |
