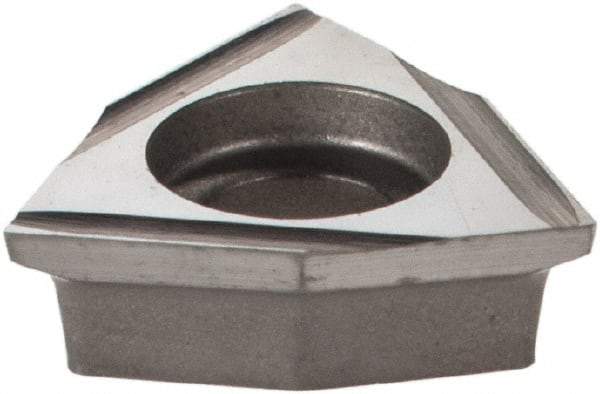

Iscar - WPEX050300 Grade IC08 Carbide Turning Insert - Uncoated, 80° Trigon, 5/16" Inscr Circle, 1/8" Thick, 0" Corner Radius
Item #: 91162008
Brand: Iscar
Model #: 5505931
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WPEX |
| Insert Size | 050300 |
| Material | Carbide |
| Length (mm) | 5.00 |
| Length (Decimal Inch) | 0.1970 |
| Inscribed Circle (mm) | 7.94 |
| Inscribed Circle (Decimal Inch) | 0.3125 |
| Inscribed Circle (Inch) | 5/16 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Manufacturer's Grade | IC08 |
| Coating | Uncoated |
| Hole Diameter (mm) | 3.70 |
| Hole Diameter (Decimal Inch) | 0.1457 |
| Rake | Positive |
| Relief Angle | 8 |
| Included Angle | 80 |
| Cutting Direction | Right Hand |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Insert Holding Method | Screw |
| Shape | Trigon |
