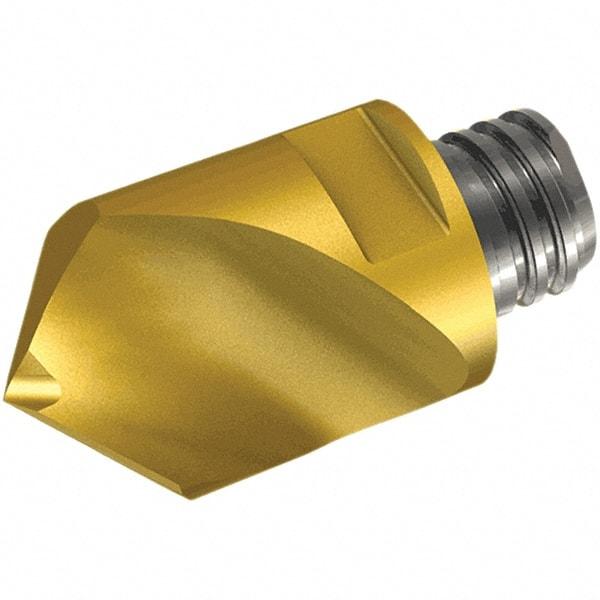

Iscar - MM EC-D Grade IC908 Carbide Spotting Drill Milling Tip Insert - TiAlN Finish, 1 Flute, 12mm Cutting Diam, 23mm Extension
Item #: 91159004
Brand: Iscar
Model #: 5607253
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM EC-D |
| Milling Tip Type | Spotting Drill |
| Material | Carbide |
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Manufacturer's Grade | IC908 |
| Number of Flutes | 1 |
| Coating | TiAlN |
| Milling Tip Full Description | Spotting Drill |
| Coating Process | PVD |
| Extension From Holder (mm) | 23.00 |
| Extension From Holder (Decimal Inch) | 0.9055 |
| Thread Size | T08 |
| Included Angle | 90 |
