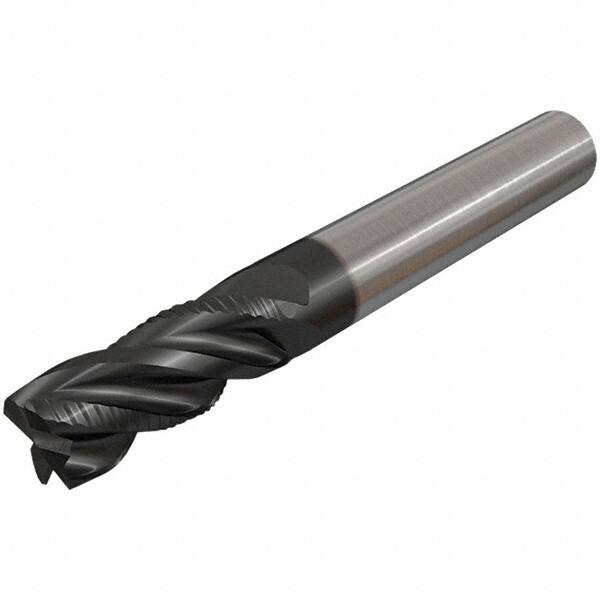

Iscar - 4 Flute Solid Carbide Roughing & Finishing Corner Chamfer End Mill - TiAlN Finish, Straight Shank, 38° Helix, Non-Centercutting, Regular Length
Item #: 91157388
Brand: Iscar
Model #: 5622697
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Non-Center Cutting applications have peripheral teeth allowing for the user to side (radial) cut or contour an exterior surface. Used in applications where plunge cutting is not necessary.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 6.00 |
| Mill Diameter (Decimal Inch) | 0.2362 |
| End Type | Corner Chamfer |
| Chamfer Length (Decimal Inch) | 0.0098 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Length of Cut (mm) | 14.0000 |
| Length of Cut (Decimal Inch) | 0.5512 |
| Shank Diameter (mm) | 6 |
| Overall Length (mm) | 57 |
| Centercutting | Non-Center Cutting |
| Extended Reach | NonExtendedReach |
| Chipbreaker | No |
| Shank Type | Straight Shank |
| Helix Angle | 38 |
| Material Grade | Submicron |
| Single or Double End | Single |
| Length Type | Regular |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (mm) | -0.025 to 0.047 |
| Shank Diameter Tolerance (mm) | 0.000/-0.009 |
