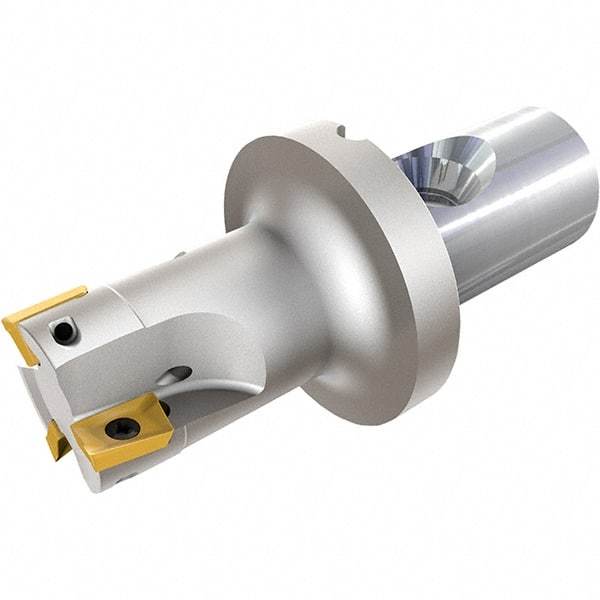

Iscar - 1" Cut Diam, 0.56" Max Depth of Cut, 1.89" OAL, Indexable Square Shoulder End Mill - HM90 ADKT 1505.. Inserts, CF4 Modular Connection, 90° Lead Angle, Through Coolant, Series ClickFit, Heli2000
Item #: 91150631
Brand: Iscar
Model #: 3101734
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Modular Connection |
| Modular Connection Size | CF4 |
| Overall Length/Projection (Decimal Inch) | 1.8900 |
| Lead Angle | 90 |
| Series | ClickFit, Heli2000 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.5600 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HM90 E90AD-CF-15 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.8900 |
| Insert Compatibility | HM90 ADKT 1505.. |
