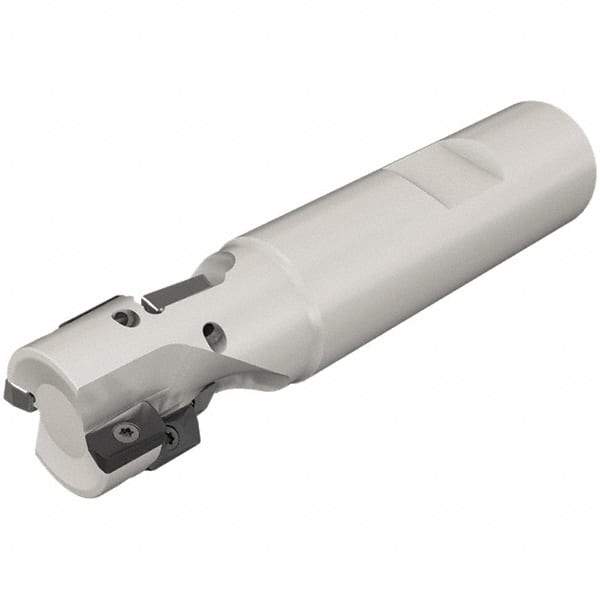

Iscar - 1-1/4" Cut Diam, 1.4" Max Depth of Cut, 1-1/4" Shank Diam, 4.3" OAL, Indexable Square Shoulder End Mill - HP ANK-07.. Inserts, Weldon Shank, 90° Lead Angle, Series Heliplus
Item #: 91149658
Brand: Iscar
Model #: 3103945
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.3000 |
| Lead Angle | 90 |
| Series | Heliplus |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 1.4000 |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HP ANK-07 |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 1.8000 |
| Weldon Flat | Yes |
| Insert Compatibility | HP ANK-07.. |
| Shank Length (Decimal Inch) | 2.5000 |
