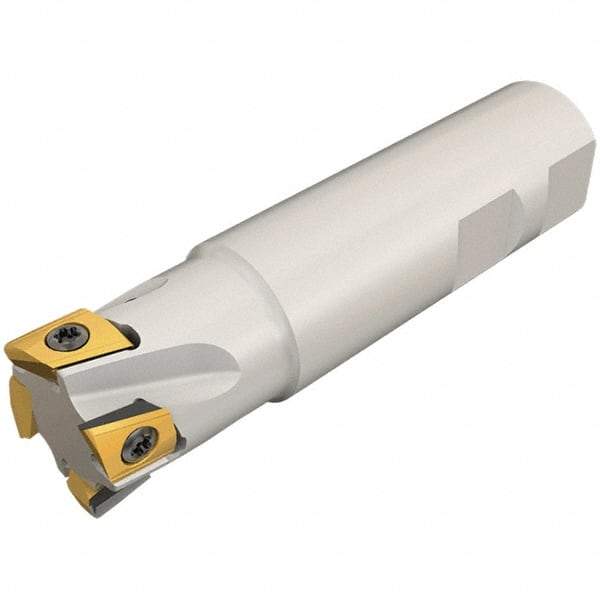

Iscar - 3/4" Cut Diam, 0.394" Max Depth of Cut, 3/4" Shank Diam, 4-3/4" OAL, Indexable Square Shoulder End Mill - T290 LN.T 1004 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series SumoMill
Item #: 91148684
Brand: Iscar
Model #: 3105339
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 4.7500 |
| Lead Angle | 90 |
| Series | SumoMill |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | T290 ELN-10 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.2200 |
| Weldon Flat | Yes |
| Insert Compatibility | T290 LN.T 1004 |
| Shank Length (Decimal Inch) | 3.5300 |
