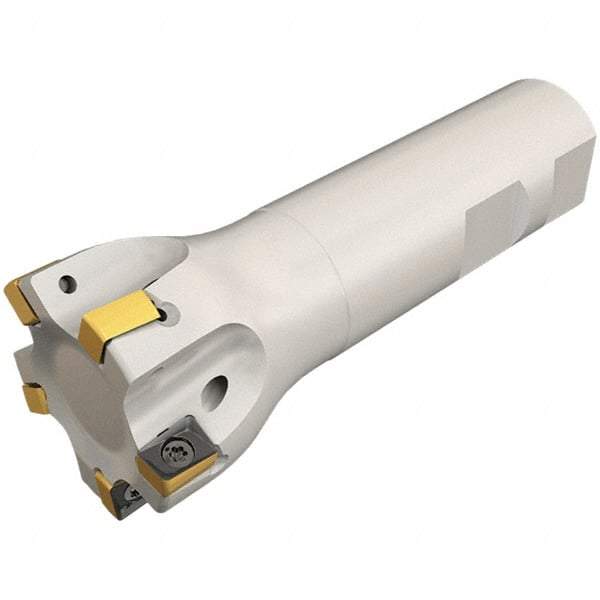

Iscar - 5/8" Cut Diam, 0.315" Max Depth of Cut, 5/8" Shank Diam, 6" OAL, Indexable Square Shoulder Helical End Mill - H490 ANKX 09.. Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Helido
Item #: 91148205
Brand: Iscar
Model #: 3105879
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Cutting Diameter (Inch) | 5/8 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length/Projection (Decimal Inch) | 6.0000 |
| Lead Angle | 90 |
| Series | Helido |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | H490 E90AX-09 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.5000 |
| Weldon Flat | No |
| Insert Compatibility | H490 ANKX 09.. |
| Shank Length (Decimal Inch) | 4.5000 |
