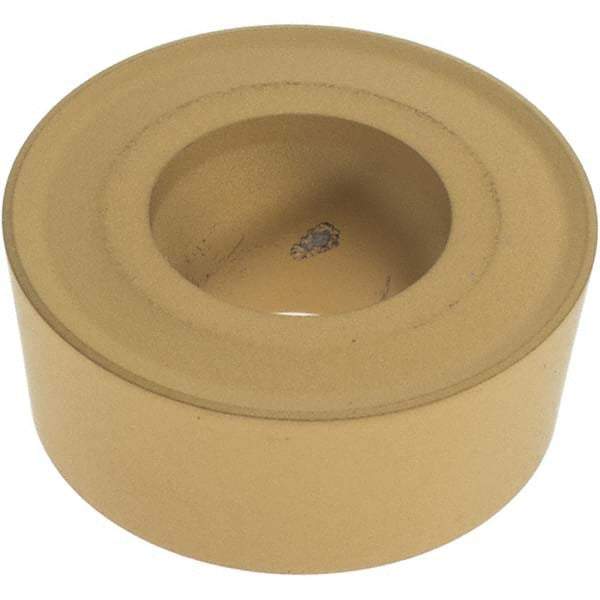

Iscar - RCMT1606M0 Grade IC9250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, Round, 16mm Inscr Circle, 1/4" Thick
Item #: 91144436
Brand: Iscar
Model #: 5507582
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 1606M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6300 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | IC9250 |
| Coating | TiCN/Al2O3/TiN |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Insert Holding Method | Screw |
| Shape | Round |
