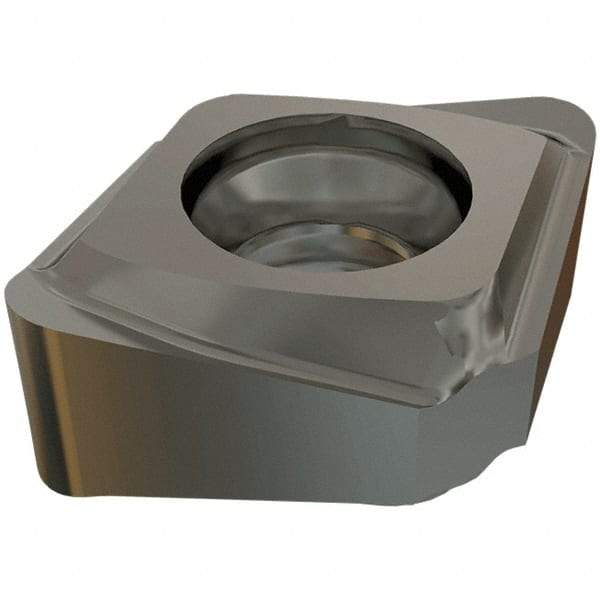

Iscar - CNMT070308 MM Grade IC808 Carbide Turning Insert - TiAlN Finish, 80° Diamond, 7mm Inscr Circle, 4mm Thick, 1/32" Corner Radius
Item #: 91138933
Brand: Iscar
Model #: 5607422
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMT |
| Insert Size | 070308 |
| Material | Carbide |
| Inscribed Circle (mm) | 7.00 |
| Inscribed Circle (Decimal Inch) | 0.2756 |
| Thickness (Decimal Inch) | 0.1575 |
| Thickness (mm) | 4.00 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Chip Breaker | MM |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 80 |
| Series | TorMill |
| Insert Holding Method | Screw |
| Shape | Diamond |
