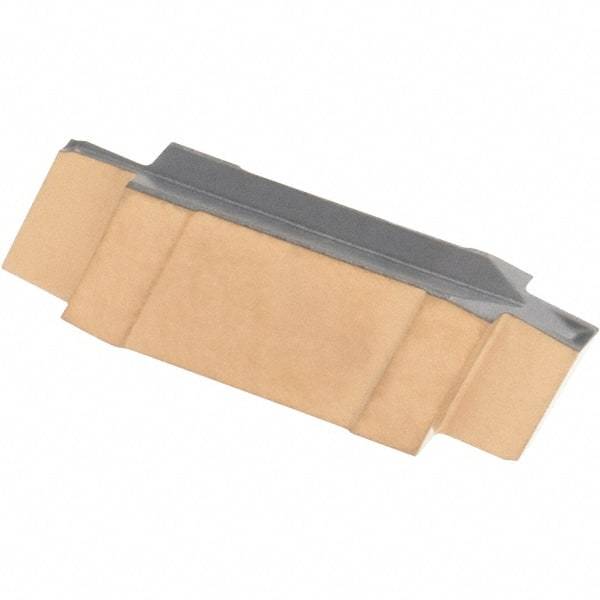

Iscar - 125010GIG Grade IC830, 1.25mm Cutting Width Carbide Grooving Insert - 2mm Max Depth of Cut, Neutral, 0.1mm Corner Radius, TiAlN Finish
Item #: 91137117
Brand: Iscar
Model #: 6405018
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIG |
| Insert Size | 125010 |
| Material | Carbide |
| Cutting Width (mm) | 1.25 |
| Cutting Width (Decimal Inch) | 0.0492 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Coating Process | PVD |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
