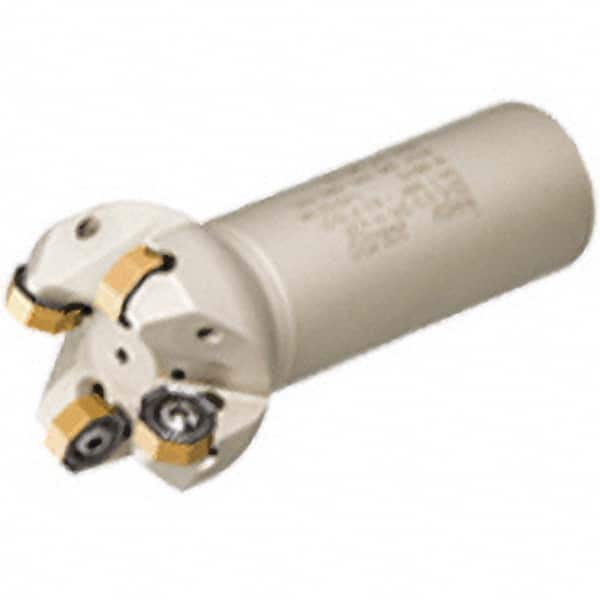

Iscar - 45° Lead Angle, 50.4mm Max Cut Diam, 40mm Min Cut Diam, 3.5mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 4 Inserts, ONMU 0505 Insert Style, 110mm Overall Length, Through Coolant, Straight Shank
Item #: 91122788
Brand: Iscar
Model #: 3105297
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (mm) | 40.00 |
| Maximum Cutting Diameter (mm) | 50.40 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Lead Angle | 45 |
| Overall Length (mm) | 110.00 |
| Insert Style | ONMU 0505 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 3.50 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Toolholder Style | SOE45 |
| Number of Flutes | 4 |
| Head Length (mm) | 35.00 |
| Weldon Flat | Yes |
