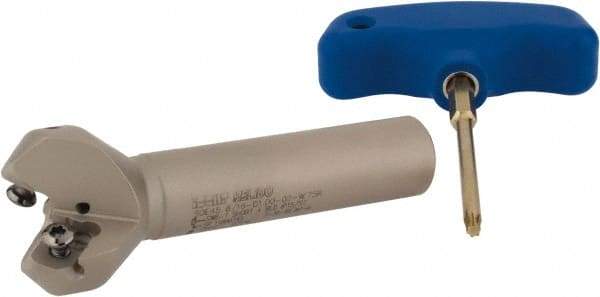

Iscar - 45° Lead Angle, 1.409" Max Cut Diam, 1" Min Cut Diam, 0.138" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, ONMU, OXMT, RXMT, SNMU Insert Style, 4" Overall Length, Through Coolant, Straight Shank
Item #: 91122770
Brand: Iscar
Model #: 3105302
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.4090 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 45 |
| Overall Length (Decimal Inch) | 4.0000 |
| Insert Style | ONMU; OXMT; RXMT; SNMU |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Toolholder Style | SOE45 |
| Number of Flutes | 2 |
| Weldon Flat | No |
