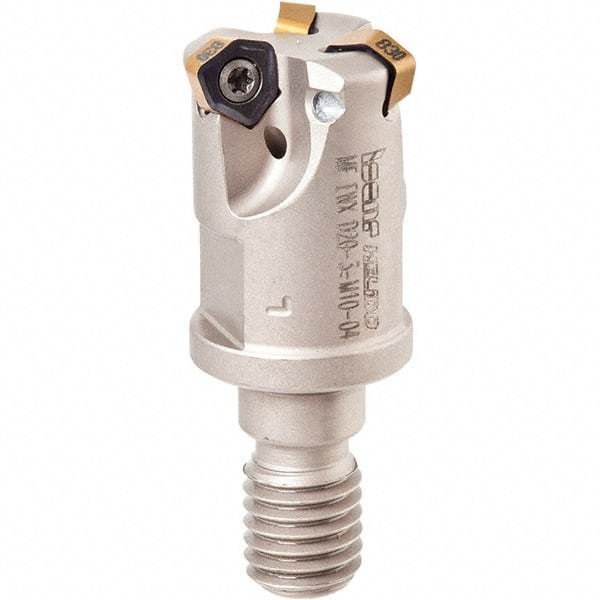

Iscar - 30° Lead Angle, 20mm Max Cut Diam, 13mm Min Cut Diam, 1.5mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, H600 WXCU 04 Insert Style, 134mm Overall Length, Through Coolant, Straight Shank
Item #: 91122655
Brand: Iscar
Model #: 3106349
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (mm) | 13.00 |
| Maximum Cutting Diameter (mm) | 20.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Lead Angle | 30 |
| Overall Length (mm) | 134.00 |
| Insert Style | H600 WXCU 04 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 1.50 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Toolholder Style | MF EWX |
| Number of Flutes | 3 |
| Head Length (mm) | 52.70 |
| Weldon Flat | No |
