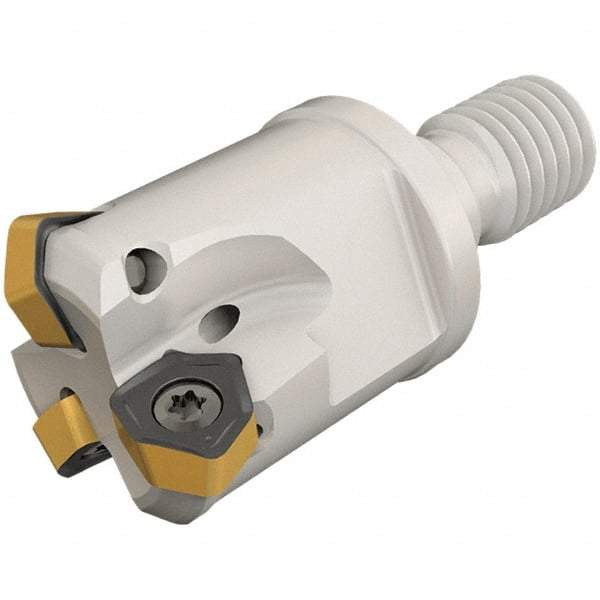

Iscar - 30° Lead Angle, 25mm Max Cut Diam, 18mm Min Cut Diam, 1.5mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 4 Inserts, H600 WXCU 04 Insert Style, 54mm Overall Length, Through Coolant, Modular Connection
Item #: 91122630
Brand: Iscar
Model #: 3181225
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.7087 |
| Minimum Cutting Diameter (mm) | 18.00 |
| Maximum Cutting Diameter (mm) | 25.00 |
| Maximum Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Modular Connection |
| Lead Angle | 30 |
| Overall Length (mm) | 54.00 |
| Overall Length (Decimal Inch) | 2.1260 |
| Insert Style | H600 WXCU 04 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Maximum Depth of Cut (mm) | 1.50 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Toolholder Style | MF EWX-M |
| Number of Flutes | 4 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2600 |
| Modular Connection Size | M12 |
