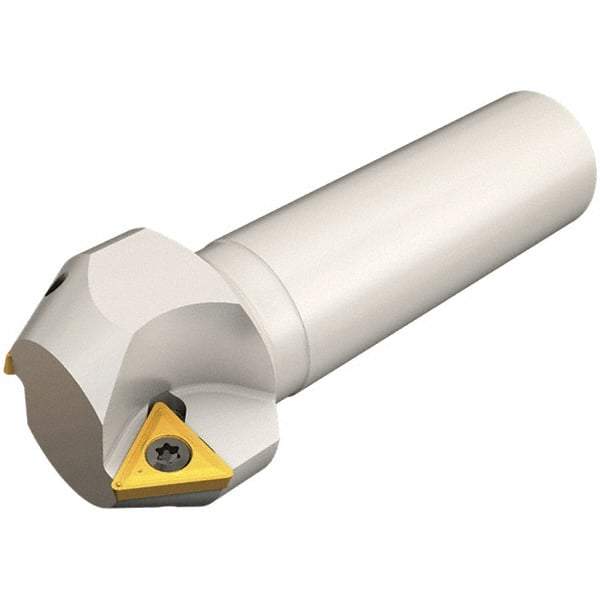

Iscar - 60° Lead Angle, 39.4mm Max Cut Diam, 25mm Min Cut Diam, 12.3mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, TPMT Insert Style, 100mm Overall Length, Straight Shank
Item #: 91122556
Brand: Iscar
Model #: 3110610
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (mm) | 25.00 |
| Maximum Cutting Diameter (mm) | 39.40 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Lead Angle | 60 |
| Overall Length (mm) | 100.00 |
| Insert Style | TPMT |
| Series | IscarMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 12.30 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Toolholder Style | E60 |
| Number of Flutes | 2 |
| Head Length (mm) | 33.00 |
| Weldon Flat | Yes |
| Shank Length (mm) | 67.00 |
