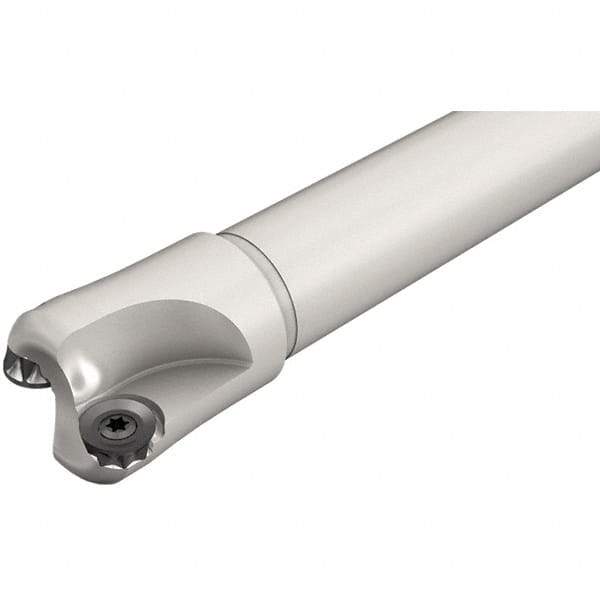

Iscar - 32mm Shank Diam, 6mm Max Depth of Cut, Straight Shank Indexable Copy End Mill - 2 Inserts, O45MT, R90CW, R90MT, S45MT, S90MT Insert, ERCM Toolholder
Item #: 91120733
Brand: Iscar
Model #: 3101344
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Number of Cutter Inserts | 2 |
| Insert Style | O45MT; R90CW; R90MT; S45MT; S90MT |
| Toolholder Style | ERCM |
| Series | ChamMill |
| Overall Length (mm) | 230.00 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (mm) | 40.00 |
| Shank Length (mm) | 190.00 |
