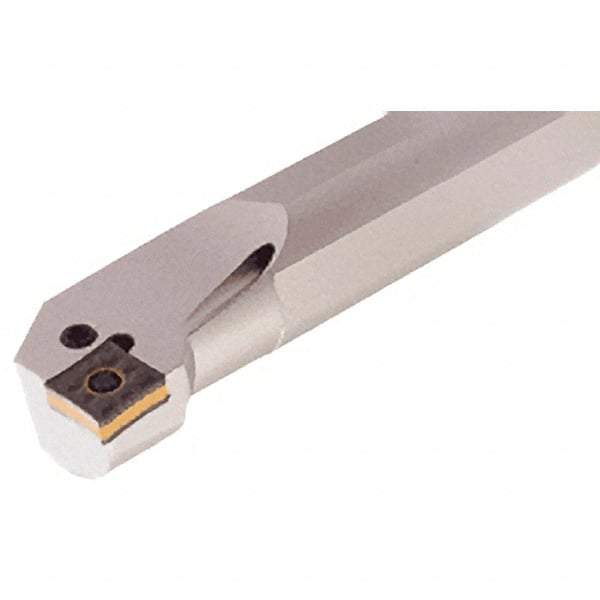

Iscar - 25mm Min Bore Diam, 250mm OAL, 20mm Shank Diam, S-PQLN Indexable Boring Bar - 40mm Max Bore Depth, QNMG 1204.. Insert, Clamp Holding Method
Item #: 91111138
Brand: Iscar
Model #: 3601556
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-PQLN |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 25.00 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 40.00 |
| Overall Length (mm) | 250.00 |
| Shank Diameter (mm) | 20.00 |
| Insert Compatibility | QNMG 1204.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 13.00 |
| Insert Inscribed Circle (mm) | 12.70 |
| Rake Angle | -12 |
| Complete Insert Compatibility | QNMG 120404-TF; QNMG 120408-GN; QNMG 120408-PP; QNMG 120408-TF; QNMG 120412-GN; QNMG 120412-TF |
| Toolholder Material | Steel |
