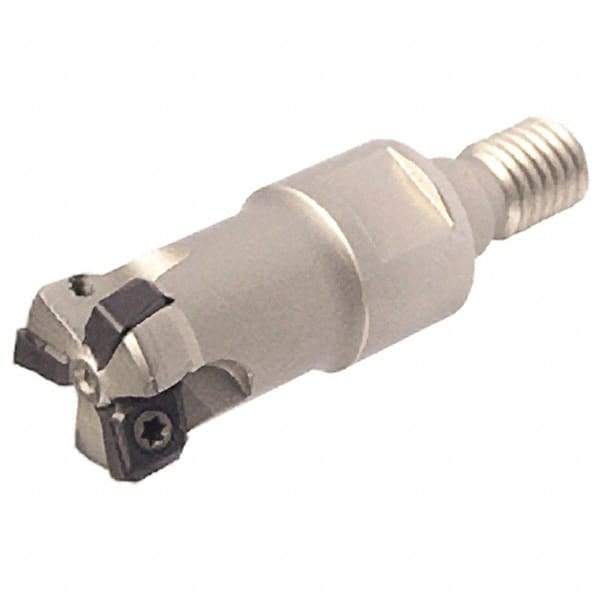

Iscar - 16mm Cutting Diam, 5mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 2 Inserts, CNHT 07 Insert, E93CN-M Toolholder
Item #: 91108845
Brand: Iscar
Model #: 3103064
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M8 |
| Number of Cutter Inserts | 2 |
| Insert Style | CNHT 07 |
| Toolholder Style | E93CN-M |
| Series | FlexFit; TorMill |
| Overall Length (mm) | 47.50 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (mm) | 30.00 |
| Modular Connection Size | M8 |
