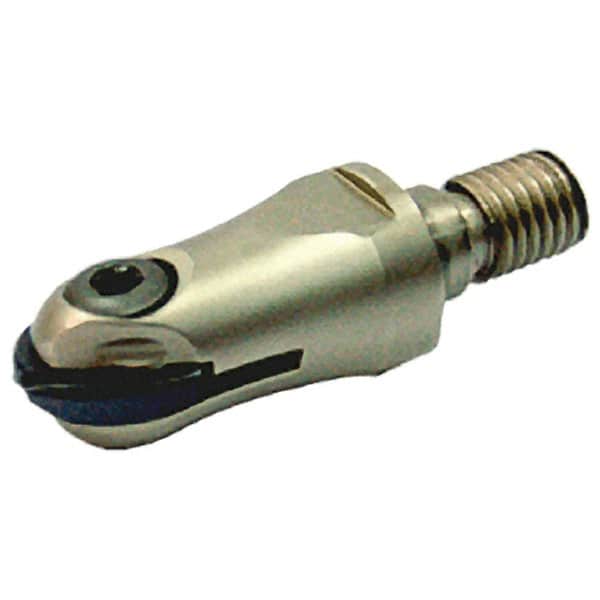

Iscar - 16mm Cut Diam, 55mm OAL, Indexable Ball Nose End Mill - 35mm Head Length, M10 Modular Connection, HCM-M Toolholder, HBF-QF, HBR-QF, HCD-QF, HCR Insert
Item #: 91108605
Brand: Iscar
Model #: 3104123
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6300 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M10 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | HBF-QF; HBR-QF; HCD-QF; HCR |
| Toolholder Style | HCM-M |
| Series | BallPlus; FlexFit |
| Overall Length (mm) | 55.00 |
| Overall Length (Decimal Inch) | 2.1654 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Number of Flutes | 1 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Neck Diameter (Decimal Inch) | 0.7090 |
