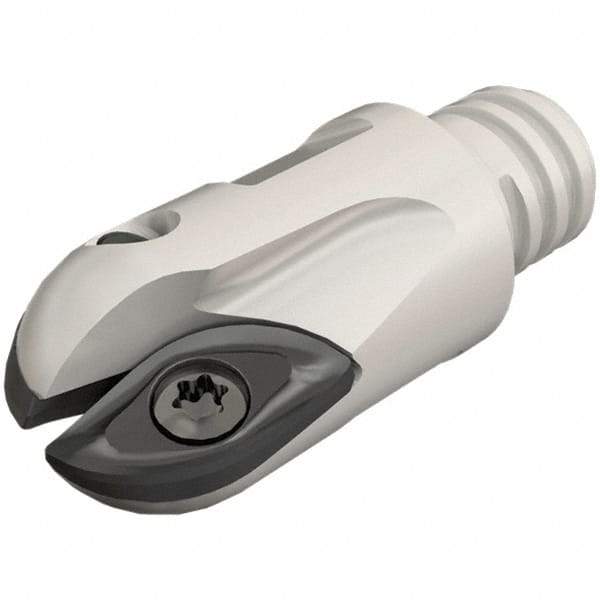

Iscar - 12mm Cut Diam, 9.6mm Max Depth of Cut, 28mm OAL, Indexable Ball Nose End Mill - 20mm Head Length, T08 Modular Connection, BCM-MM Toolholder, BCR D120 Insert
Item #: 91108571
Brand: Iscar
Model #: 3104288
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Maximum Depth of Cut (mm) | 9.60 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | T08 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | BCR D120 |
| Toolholder Style | BCM-MM |
| Series | DropMill; Multimaster |
| Overall Length (mm) | 28.00 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Number of Flutes | 2 |
| Head Length (mm) | 20.00 |
| Neck Diameter (Decimal Inch) | 0.4500 |
