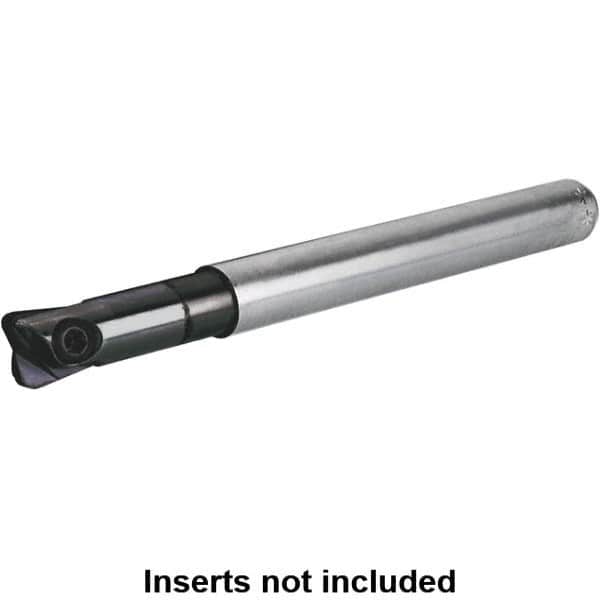

Kennametal - 20mm Cut Diam, 5mm Max Depth of Cut, 20mm Shank Diam, 162mm OAL, Indexable Ball Nose End Mill - 47mm Head Length, Straight Shank, KDMT Toolholder, KDM 20.. Insert
Item #: 91051649
Brand: Kennametal
Model #: 1918694
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | KDM 20.. |
| Toolholder Style | KDMT |
| Series | KDMT |
| Overall Length (mm) | 162.00 |
| Overall Length (Decimal Inch) | 6.3780 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (mm) | 47.00 |
| Head Length (Decimal Inch) | 1.8504 |
| Neck Diameter (Decimal Inch) | 0.7087 |
| Maximum RPM | 40000 |
