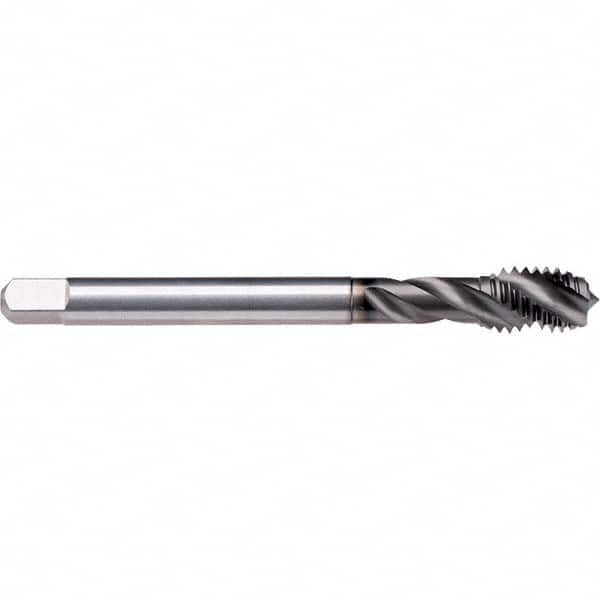

Spiral Flute Tap: 1/2-20, UNF, 4 Flute, Modified Bottoming, 2B Class of Fit, Cobalt, GLT-1 Finish 0.866″ Thread Length, 3.937″ OAL, Right Hand Flute, Right Hand Thread, H5, Series CU50C300
Item #: 90745951
Brand: Emuge
Model #: CU50C300.5047
Product Specifications
| Material | Cobalt |
| Coating/Finish | GLT-1 |
| Thread Size (Inch - 0 Decimals) | 1/2-20 |
| Thread Standard | UNF |
| Thread Limit | H5 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.8660 |
| Overall Length (Decimal Inch) | 3.9370 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 35 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Square Size (Decimal Inch) | 0.2750 |
| Flute Style | Fast |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | CU50C300 |
| Coolant Through | No |
| Teeth per Inch | 20 |
| Number Of Flutes | 4 |
| Class Of Fit | 2B |
