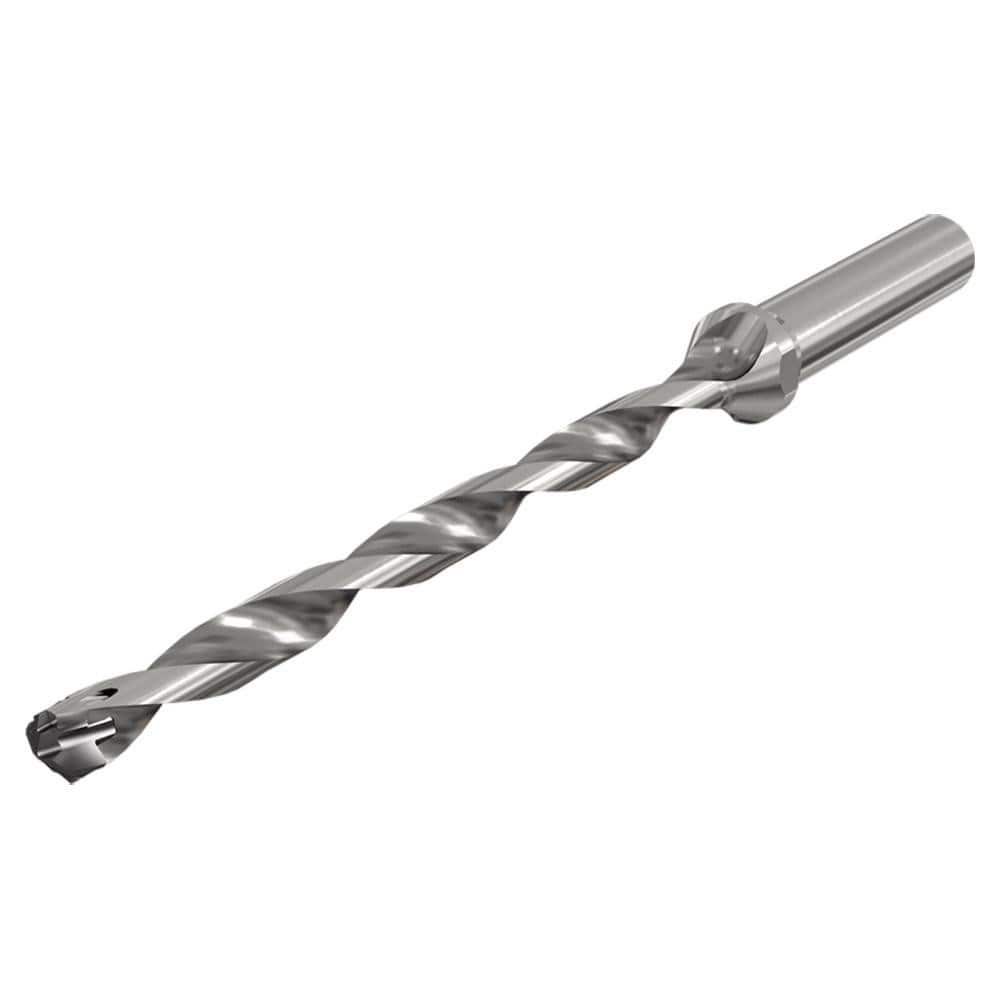

Replaceable Tip Drill: 1.063 to 1.098'' Drill Dia, 12.94″ Max Depth, 1.25'' Straight-Cylindrical Shank Uses ICP Inserts, Through Coolant
Item #: 90486093
Brand: Iscar
Model #: 3203559
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 1.0630 |
| Maximum Drill Diameter (Decimal Inch) | 1.0980 |
| Maximum Drill Depth (Decimal Inch) | 12.9400 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 8.0000+ |
| Compatible Insert Style | ICP |
| Compatible Insert Size Code | 27 |
| Series | DCN |
| Toolholder Style | DCN |
| Flute Length (Decimal Inch) | 12.9400 |
| Body Length (Decimal Inch) | 15.3000 |
| Shank Length (Decimal Inch) | 2.3600 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Superalloy & Titanium |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
