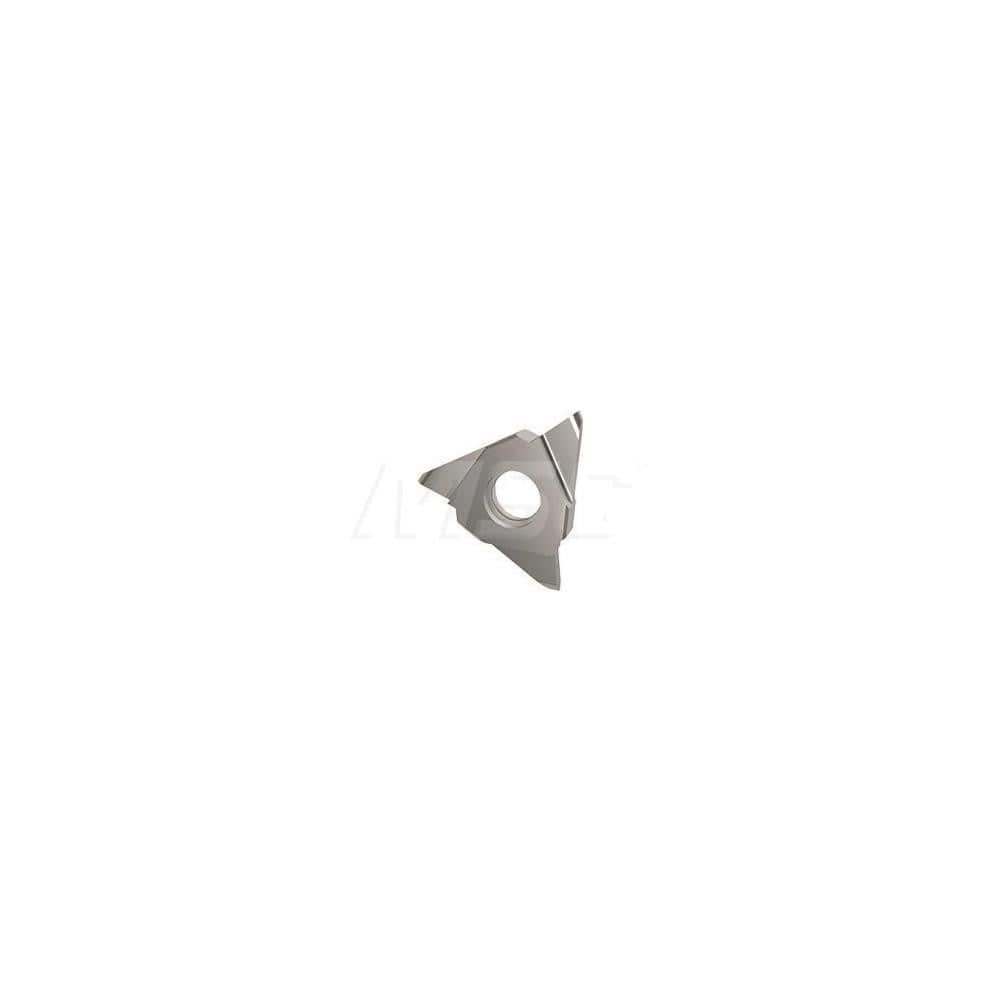

Grooving Insert: GE 30504, Solid Carbide Uncoated, Neutral, 1.1 mm Cutting Width, 3 mm Max Depth, Series 25615
Item #: 90273350
Brand: Guhring
Model #: 9256150120030
Product Specifications
| Insert Style | GE 305 |
| Insert Size Code | 11005504 |
| Insert Size | 04 |
| Insert Material | Solid Carbide |
| Material Grade | Fine-Grained |
| Cutting Width (mm) | 1.10 |
| Maximum Depth of Cut (mm) | 3.00 |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.1000 |
| Corner Radius (mm) | 0.55 |
| Corner Radius (Decimal Inch) | 0.0220 |
| Maximum Depth Of Cut Range (mm) | 3.00 to 4.00 |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | 25615 |
| Primary Workpiece Material | Non-Ferrous Metal; Aluminum |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K |
| Standards | California PROP 65 |
| Coating/Finish | Uncoated |
