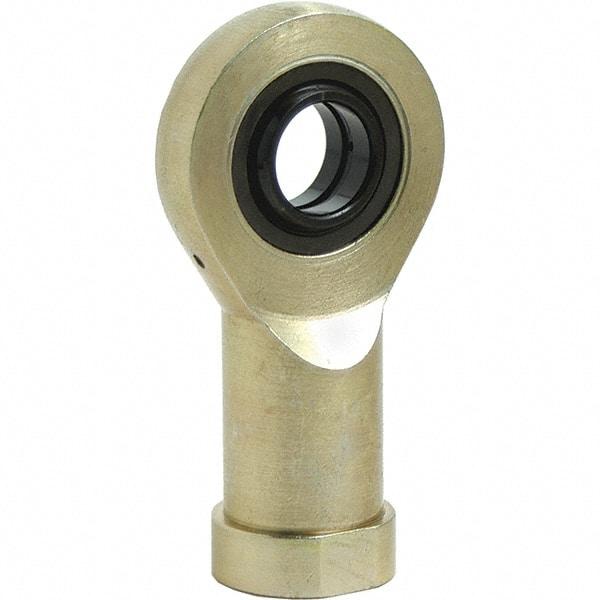

Tritan - 1.7717" ID, 6.4173" Max OD, 53,954 Lb Max Static Cap, Female Spherical Rod End - M42x3 RH, 1.2598" Shank Diam, 2.5591" Shank Length, Zinc Plated Carbon Steel with 52100/MoS2 Coated Raceway
Item #: 90159922
Brand: Tritan
Model #: SIA 45ES 2RS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 1.7717 |
| Inside Diameter (mm) | 1143.0000 |
| Inside Diameter (Inch) | 1.772 |
| Style | Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 6.4173 |
| Maximum Outside Diameter (mm) | 4140.20 |
| Maximum Outside Diameter (Inch) | 6 |
| Maximum Outside Diameter (Inch) | 6.4173 |
| Maximum Static Load Capacity (Pounds) | 53954.0 |
| Width (Inch) | 4.020 |
| Width (Decimal Inch) | 4.0200 |
| Width (mm) | 102.10 |
| Thread Size | M42x3 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 32.0000 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Shank Diameter (Inch) | 1.260 |
| Raceway Material | 52100/MoS2 Coated |
| Shank Length (Decimal Inch) | 2.5591 |
| Shank Length (mm) | 65.000 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 9.720 |
| Overall Length (mm) | 246.9000 |
| Overall Length (Decimal Inch) | 9.7200 |
