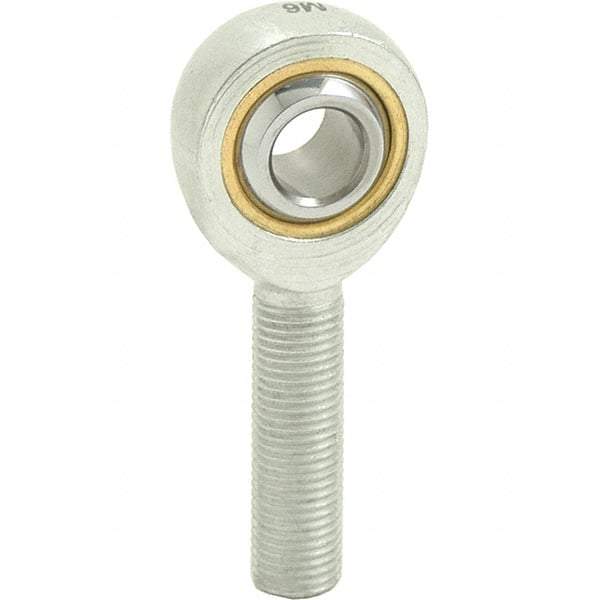

Tritan - 5/16" ID, 2-5/16" Max OD, 2,796 Lb Max Static Cap, Male Spherical Rod End - 5/16-24 RH, 7/16" Shank Diam, 1-1/4" Shank Length, Zinc Plated Carbon Steel with Sintered Oil Impregnated Bronze Raceway
Item #: 90159757
Brand: Tritan
Model #: HM 5
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.3125 |
| Inside Diameter (mm) | 7.9000 |
| Inside Diameter (Inch) | 5/16 |
| Style | Male Rod End |
| Maximum Outside Diameter (Decimal Inch) | 2.3120 |
| Maximum Outside Diameter (mm) | 58.70 |
| Maximum Outside Diameter (Inch) | 2 |
| Maximum Outside Diameter (Inch) | 2.3120 |
| Maximum Static Load Capacity (Pounds) | 2796.0 |
| Width (Inch) | 7/8 |
| Width (Decimal Inch) | 0.8750 |
| Width (mm) | 22.20 |
| Thread Size | 5/16-24 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 11.1000 |
| Shank Diameter (Decimal Inch) | 0.4370 |
| Shank Diameter (Inch) | 0.437 |
| Raceway Material | Sintered Oil Impregnated Bronze |
| Shank Length (Decimal Inch) | 1.2500 |
| Shank Length (mm) | 31.800 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 2.310 |
| Overall Length (mm) | 58.7000 |
| Overall Length (Decimal Inch) | 2.3100 |
