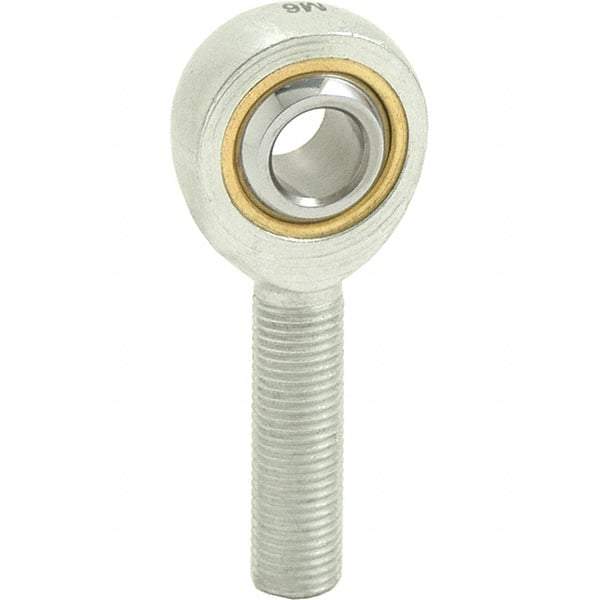

Tritan - 1/2" ID, 3-3/32" Max OD, 6,700 Lb Max Static Cap, Male Spherical Rod End - 1/2-20 RH, 5/8" Shank Diam, 1-1/2" Shank Length, Zinc Plated Carbon Steel with Sintered Oil Impregnated Bronze Raceway
Item #: 90159740
Brand: Tritan
Model #: HM 8
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.5000 |
| Inside Diameter (mm) | 12.7000 |
| Inside Diameter (Inch) | 1/2 |
| Style | Male Rod End |
| Maximum Outside Diameter (Decimal Inch) | 3.0940 |
| Maximum Outside Diameter (mm) | 78.60 |
| Maximum Outside Diameter (Inch) | 3 |
| Maximum Outside Diameter (Inch) | 3.0940 |
| Maximum Static Load Capacity (Pounds) | 6700.0 |
| Width (Inch) | 1.312 |
| Width (Decimal Inch) | 1.3120 |
| Width (mm) | 33.30 |
| Thread Size | 1/2-20 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 15.9000 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Raceway Material | Sintered Oil Impregnated Bronze |
| Shank Length (Decimal Inch) | 1.5000 |
| Shank Length (mm) | 38.100 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 3.090 |
| Overall Length (mm) | 78.5000 |
| Overall Length (Decimal Inch) | 3.0900 |
