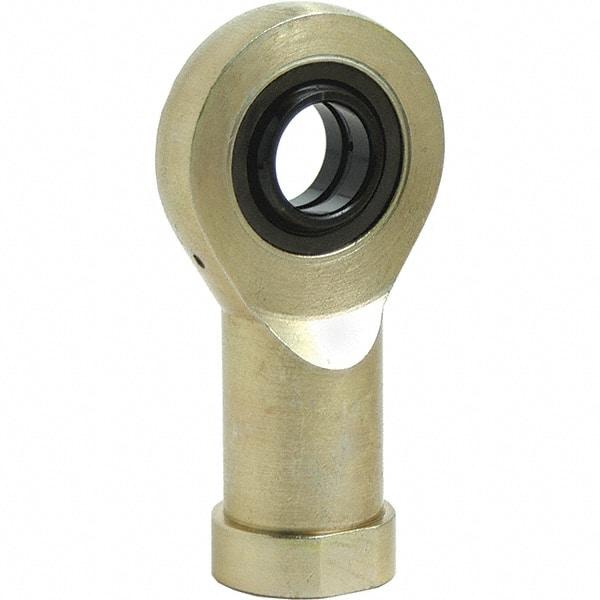

Tritan - 0.7874" ID, 3-1/14" Max OD, 13,489 Lb Max Static Cap, Female Spherical Rod End - M20x1.5 RH, 0.6299" Shank Diam, 1.5748" Shank Length, Zinc Plated Carbon Steel with 52100/MoS2 Coated Raceway
Item #: 90159666
Brand: Tritan
Model #: SI 20ES 2RS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.7874 |
| Inside Diameter (mm) | 508.0000 |
| Inside Diameter (Inch) | 0.787 |
| Style | Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 3.0709 |
| Maximum Outside Diameter (mm) | 1981.20 |
| Maximum Outside Diameter (Inch) | 3 |
| Maximum Outside Diameter (Inch) | 3.0709 |
| Maximum Static Load Capacity (Pounds) | 13489.0 |
| Width (Inch) | 2.090 |
| Width (Decimal Inch) | 2.0900 |
| Width (mm) | 53.10 |
| Thread Size | M20x1.5 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 16.0000 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (Inch) | 0.630 |
| Raceway Material | 52100/MoS2 Coated |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.000 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 5.120 |
| Overall Length (mm) | 130.0000 |
| Overall Length (Decimal Inch) | 5.1200 |
