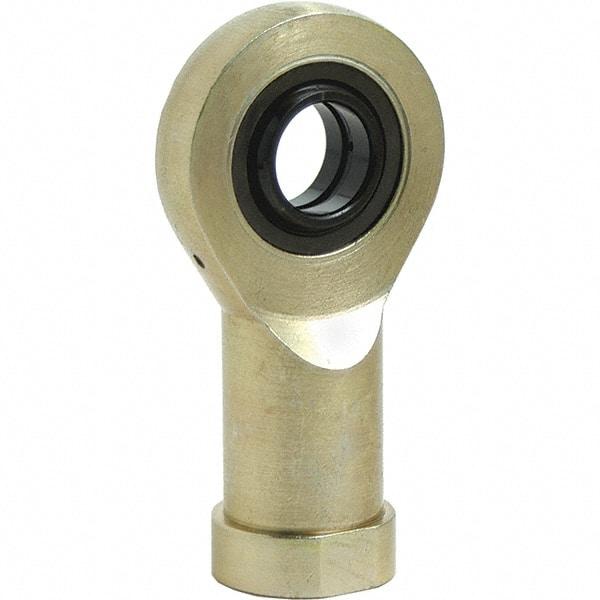

Tritan - 1.5748" ID, 5.9055" Max OD, 40,466 Lb Max Static Cap, Female Spherical Rod End - M39x3 LH, 1.1024" Shank Diam, 2.5591" Shank Length, Zinc Plated Carbon Steel with 52100/MoS2 Coated Raceway
Item #: 90159609
Brand: Tritan
Model #: SILA 40ES 2RS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 1.5748 |
| Inside Diameter (mm) | 1016.0000 |
| Inside Diameter (Inch) | 1.575 |
| Style | Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 5.9055 |
| Maximum Outside Diameter (mm) | 3810.00 |
| Maximum Outside Diameter (Inch) | 6 |
| Maximum Outside Diameter (Inch) | 5.9055 |
| Maximum Static Load Capacity (Pounds) | 40466.0 |
| Width (Inch) | 3.620 |
| Width (Decimal Inch) | 3.6200 |
| Width (mm) | 91.90 |
| Thread Size | M39x3 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 28.0000 |
| Shank Diameter (Decimal Inch) | 1.1024 |
| Shank Diameter (Inch) | 1.102 |
| Raceway Material | 52100/MoS2 Coated |
| Shank Length (Decimal Inch) | 2.5591 |
| Shank Length (mm) | 65.000 |
| Thread Direction | Left Hand |
| Overall Length (Inch) | 9.210 |
| Overall Length (mm) | 233.9000 |
| Overall Length (Decimal Inch) | 9.2100 |
