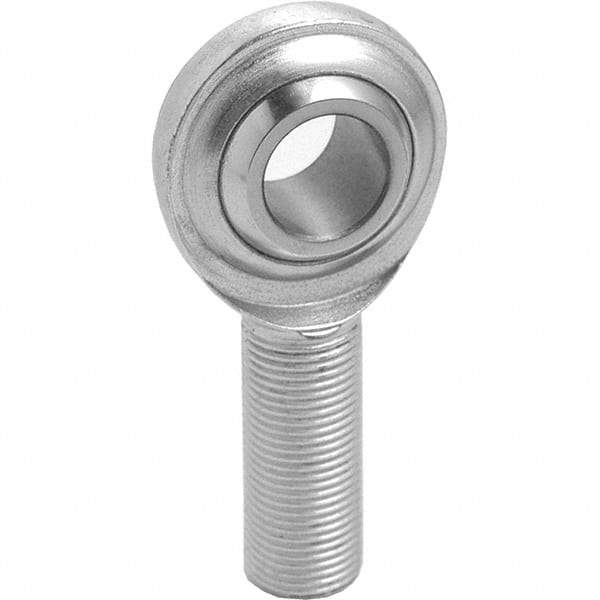

Tritan - 5/8" ID, 9,813 Lb Max Static Cap, Male Spherical Rod End - 5/8-18 RH, 3/4" Shank Diam, 1-5/8" Shank Length, Zinc Plated Carbon Steel with PTFE Lined Chrome Steel Raceway
Item #: 90159161
Brand: Tritan
Model #: CM 10T
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.6250 |
| Inside Diameter (mm) | 16.0000 |
| Inside Diameter (Inch) | 5/8 |
| Style | Male Rod End |
| Maximum Outside Diameter (Decimal Inch) | 0.0000 |
| Maximum Outside Diameter (mm) | 0.00 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Static Load Capacity (Pounds) | 9813.0 |
| Width (Inch) | 1-1/2 |
| Width (Decimal Inch) | 1.5000 |
| Width (mm) | 38.10 |
| Thread Size | 5/8-18 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 19.1000 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Raceway Material | PTFE Lined Chrome Steel |
| Shank Length (Decimal Inch) | 1.6250 |
| Shank Length (mm) | 41.300 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 3.380 |
| Overall Length (mm) | 85.9000 |
| Overall Length (Decimal Inch) | 3.3800 |
