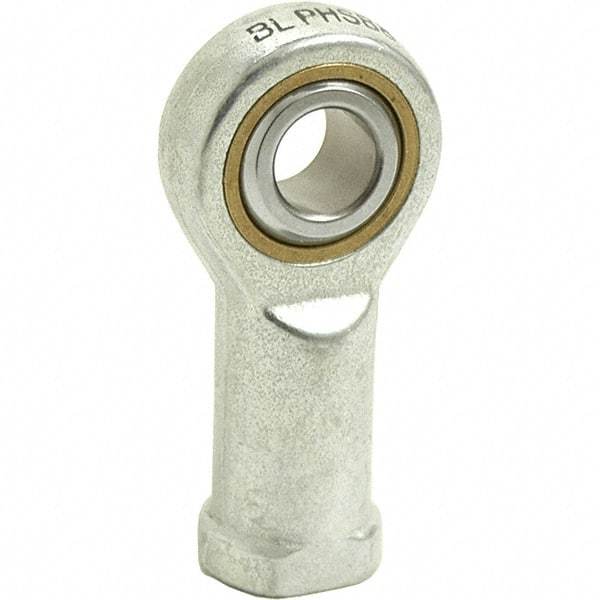

Tritan - 7/16" ID, 2-11/16" Max OD, 4,300 Lb Max Static Cap, Female Spherical Rod End - 7/16-20 RH, 9/16" Shank Diam, 15/16" Shank Length, Zinc Plated Carbon Steel with Sintered Oil Impregnated Bronze Raceway
Item #: 90159112
Brand: Tritan
Model #: HF 7
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.4375 |
| Inside Diameter (mm) | 11.0000 |
| Inside Diameter (Inch) | 7/16 |
| Style | Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 2.6875 |
| Maximum Outside Diameter (mm) | 68.30 |
| Maximum Outside Diameter (Inch) | 2-11/16 |
| Maximum Outside Diameter (Inch) | 2-11/16 |
| Maximum Static Load Capacity (Pounds) | 4300.0 |
| Width (Inch) | 1-1/4 |
| Width (Decimal Inch) | 1.2500 |
| Width (mm) | 31.80 |
| Thread Size | 7/16-20 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 14.3000 |
| Shank Diameter (Decimal Inch) | 0.5620 |
| Shank Diameter (Inch) | 0.562 |
| Raceway Material | Sintered Oil Impregnated Bronze |
| Shank Length (Decimal Inch) | 0.9370 |
| Shank Length (mm) | 23.800 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 2.440 |
| Overall Length (mm) | 62.0000 |
| Overall Length (Decimal Inch) | 2.4400 |
