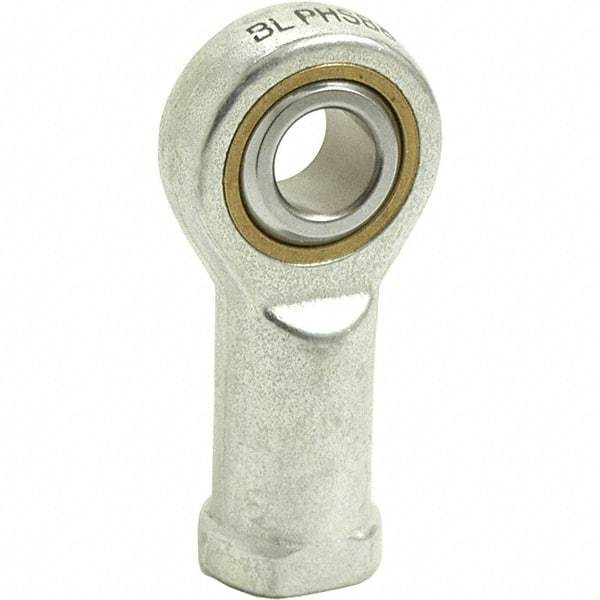

Tritan - 3/16" ID, 1-9/16" Max OD, 1,624 Lb Max Static Cap, Female Spherical Rod End - 10-32 LH, 5/16" Shank Diam, 1/2" Shank Length, Zinc Plated Carbon Steel with Sintered Oil Impregnated Bronze Raceway
Item #: 90159088
Brand: Tritan
Model #: HFL 3
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.1875 |
| Inside Diameter (mm) | 5.0000 |
| Inside Diameter (Inch) | 3/16 |
| Style | Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 1.5625 |
| Maximum Outside Diameter (mm) | 39.70 |
| Maximum Outside Diameter (Inch) | 1-9/16 |
| Maximum Outside Diameter (Inch) | 1-9/16 |
| Maximum Static Load Capacity (Pounds) | 1624.0 |
| Width (Inch) | 5/8 |
| Width (Decimal Inch) | 0.6250 |
| Width (mm) | 15.90 |
| Thread Size | 10-32 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 7.9000 |
| Shank Diameter (Decimal Inch) | 0.3120 |
| Shank Diameter (Inch) | 0.312 |
| Raceway Material | Sintered Oil Impregnated Bronze |
| Shank Length (Decimal Inch) | 0.5000 |
| Shank Length (mm) | 12.700 |
| Thread Direction | Left Hand |
| Overall Length (Inch) | 1.370 |
| Overall Length (mm) | 34.8000 |
| Overall Length (Decimal Inch) | 1.3700 |
