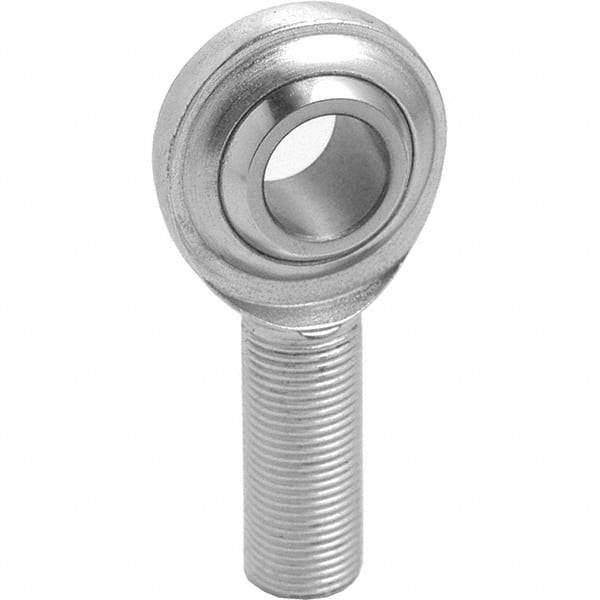

Tritan - 1/4" ID, 2,225 Lb Max Static Cap, Male Spherical Rod End - 1/4-28 LH, 3/8" Shank Diam, 1" Shank Length, Zinc Plated Carbon Steel with PTFE Lined Chrome Steel Raceway
Item #: 90158932
Brand: Tritan
Model #: CML 4T
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.2500 |
| Inside Diameter (mm) | 6.0000 |
| Inside Diameter (Inch) | 1/4 |
| Style | Male Rod End |
| Maximum Outside Diameter (Decimal Inch) | 0.0000 |
| Maximum Outside Diameter (mm) | 0.00 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Static Load Capacity (Pounds) | 2225.0 |
| Width (Inch) | 3/4 |
| Width (Decimal Inch) | 0.7500 |
| Width (mm) | 19.10 |
| Thread Size | 1/4-28 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 9.5000 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Raceway Material | PTFE Lined Chrome Steel |
| Shank Length (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 25.400 |
| Thread Direction | Left Hand |
| Overall Length (Inch) | 1.940 |
| Overall Length (mm) | 49.3000 |
| Overall Length (Decimal Inch) | 1.9400 |
