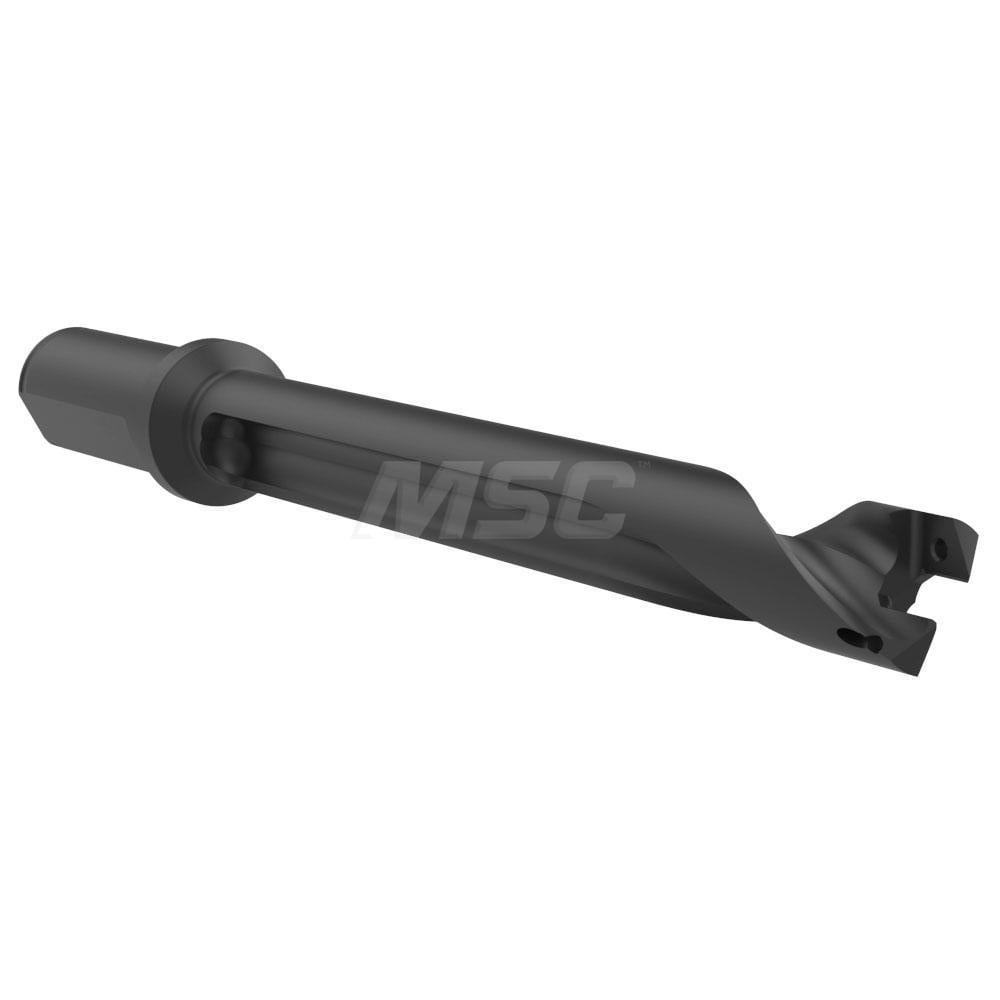

Replaceable-Tip Drill: 22 to 23.81 mm Dia, 6.6094" Max Depth, 1" Straight-Cylindrical Shank
Item #: 89532402
Brand: Allied Machine and Engineering
Model #: 60722S-100F
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.8661 |
| Minimum Drill Diameter (mm) | 22.00 |
| Maximum Drill Diameter (mm) | 23.81 |
| Maximum Drill Diameter (Decimal Inch) | 0.9374 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Inch) | 6-39/64 |
| Maximum Drill Depth (Decimal Inch) | 6.6094 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Maximum Drill Depth Range (Decimal Inch) | 6.0000 to 8.0000 |
| Series | 22 |
| Toolholder Style | GEN3SYS |
| Body Length (Decimal Inch) | 7.922 |
| Shank Length (Decimal Inch) | 2.2813 |
| Tool Application | Drilling |
| Coolant Through | No |
| UNSPSC Code | 23291502 |
| Coating/Finish | Proprietary |
| Country of Origin | UNITED STATES |
