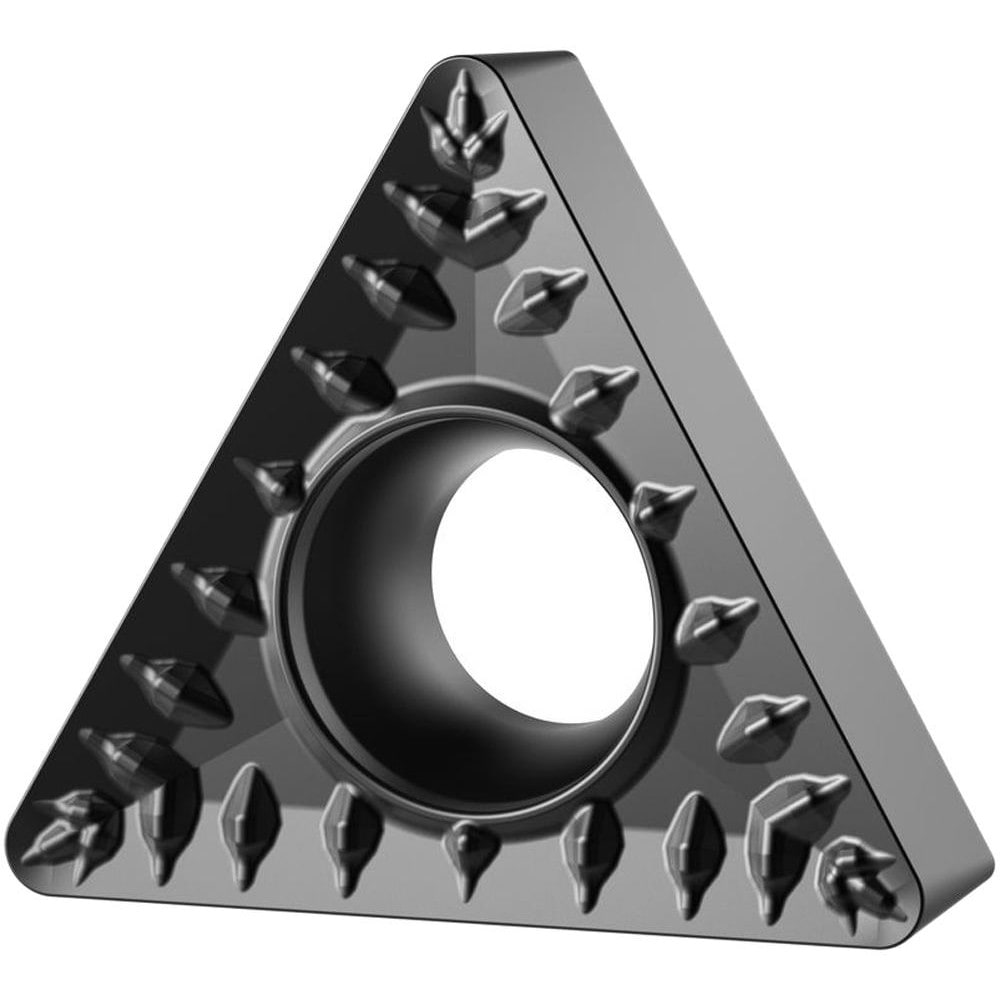

Turning Insert: TCMT3252MP KCP25C, Carbide
Item #: 84697069
Brand: Kennametal
Model #: 7088805
Product Specifications
| ANSI Insert Code | TCMT |
| ISO Insert Code | TCMT |
| Relief Angle | 7.000 |
| Insert Style | TCMT |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 60.00 |
| Manufacturer Grade | KCP25C |
| Coating/Finish | MT-TiCN |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | Screw-On Inserts |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | Triangle |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | C |
| Tolerance Code | M |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6496 |
| Insert Length (mm) | 16.50 |
| Chip Breaker | MP |
| Rake Angle | 12 |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Width (mm - 2 Decimals) | 9.53 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3252 |
| Country of Origin | UNITED STATES |
