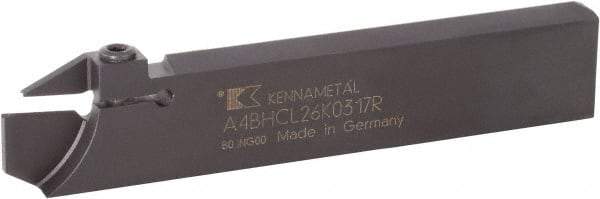

Kennametal - 1.2598" Blade Height, 5/16" Blade Width, 4.9213" OAL, Right Hand Cut, Single End Indexable Cut-Off Blade - A4BHC Blade, A4 Cut-Off Series
Item #: 89714158
Brand: Kennametal
Model #: 3967124
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 7.95 |
| Blade Width (Decimal Inch) | 0.3130 |
| Blade Overall Length (mm) | 125.00 |
| Blade Overall Length (Decimal Inch) | 4.9213 |
| Blade Style | A4BHC |
| Insert Style | A4G 0300... |
| Insert Width (mm) | 3.00 |
| Insert Width (Decimal Inch) | 0.1181 |
| Series | A4 Cut-Off |
| Insert Seat Size | 3 |
| Insert Holding Method | Screw |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3780 |
| Cutting Height (mm) | 25.00 |
| Cutting Height (Decimal Inch) | 0.9843 |
| Complete Insert Compatibility | A4G0300M03P02GMP |
