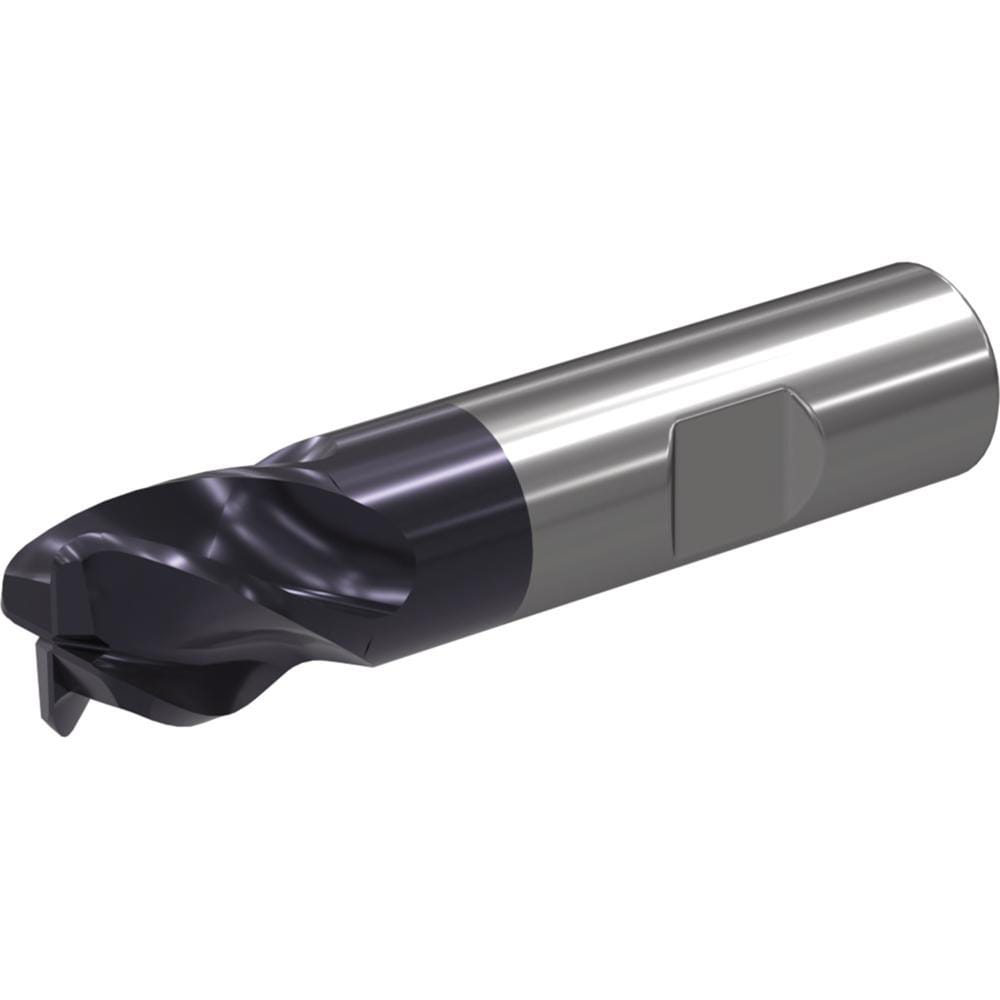

Corner Radius End Mill: 3/4" Dia, 2-1/4" LOC, 37 & 39 deg Helix, Corner Radius End, Centercutting Series W421
Item #: 33964255
Brand: Widia
Model #: 6945874
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 2-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | WU20PE |
| Overall Length (Inch) | 5 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 5.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.2500 |
| Length Type | Extended |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Reach Length (Decimal Inch) | 2.2500 |
| Reach Length (Inch) | 2-1/4 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Hard Material; High Temperature Alloy |
| Secondary Workpiece Material Code | S; H |
| Material Grade | WU20PE |
| Series | W421 |
| Material Application | Hard Material; High-Temperature Alloy; Stainless Steel; Cast Iron; Steel |
| Coating Classification | PVD |
| For Use With. | Toolholders |
