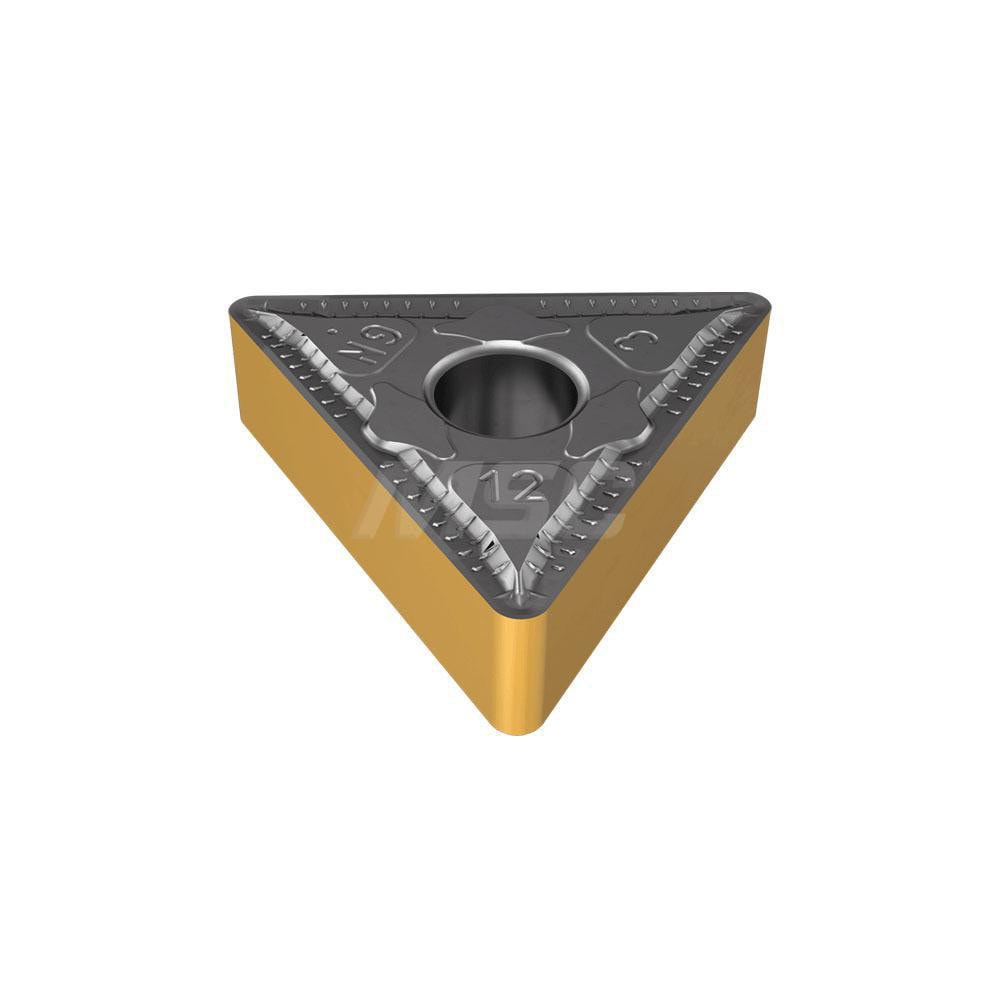

Turning Insert: TNMG 432-GN IC830, Carbide
Item #: 35355254
Brand: Iscar
Model #: 5568602
Product Specifications
| ANSI Insert Code | TNMG432 |
| ISO Insert Code | TNMG220408 |
| Insert Style | TNMG |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60 |
| Manufacturer Grade | IC830 |
| Coating/Finish | AlTiN; TiN |
| Series | Isoturn |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Hardened Materials (H) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Insert Shape Code | T |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | GN |
| ANSI Size Code | 432 |
| ISO Size Code | 220408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
